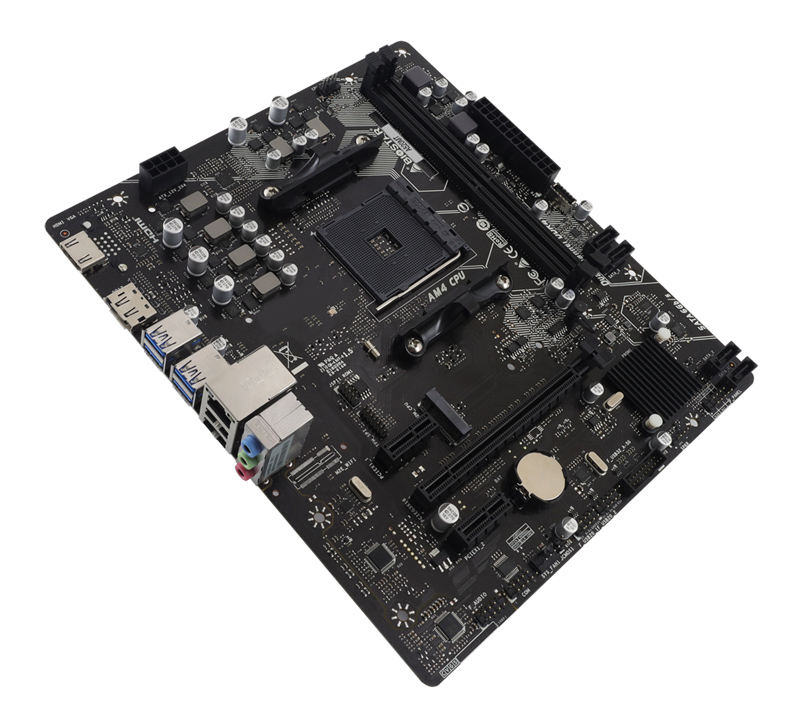

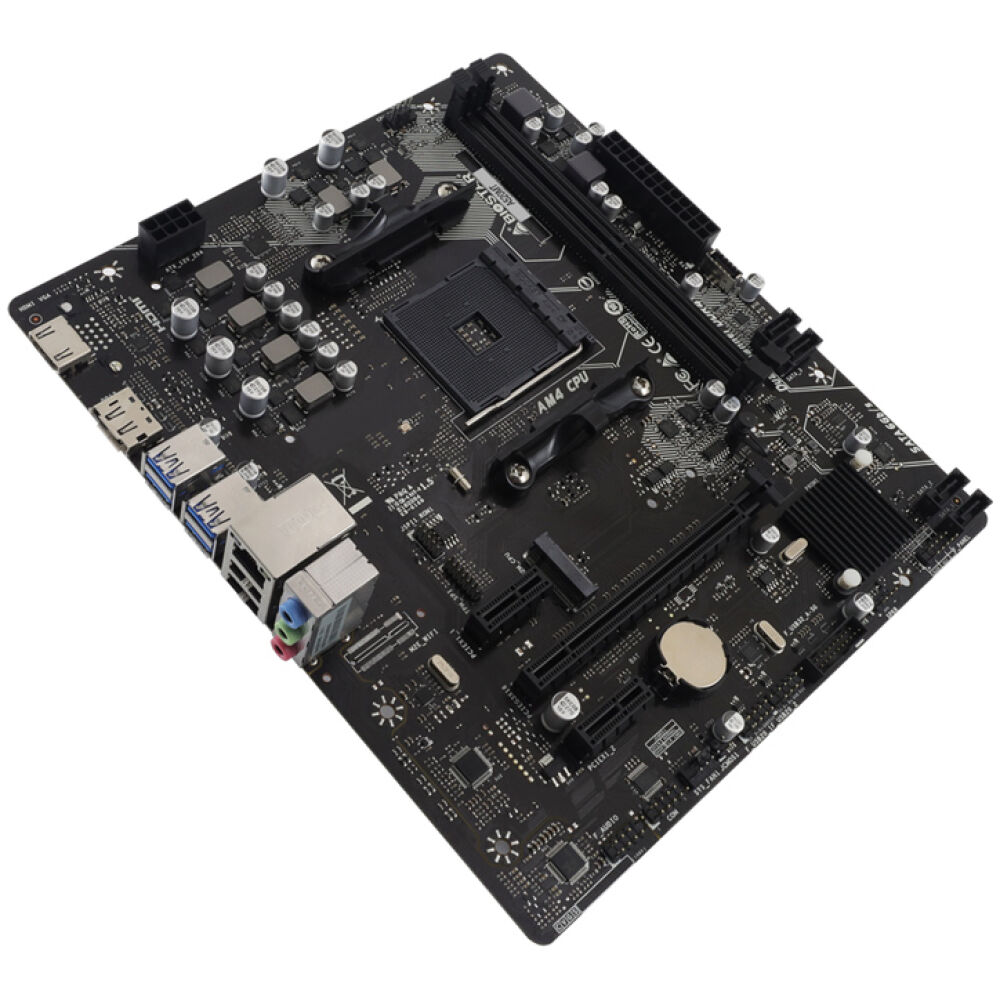

BIOSTAR μητρική A520MT, 2x DDR4, AM4, USB 3.2, uATX, GbE LAN, 7.1CH

Τεχνικά Χαρακτηριστικά

• Chipset: AMD A520
• CPU support: Socket AM4 support AMD Ryzen 3rd Gen (Matisse/Renoir) and Ryzen 4th Gen (Vermeer/Cezanne) processors, Support for future AMD Ryzen processors with BIOS update
• Memory:
  • 4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
  • 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
  • 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
  • 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
  • 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
  • Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
• Integrated video: By CPU model, Supports DX12, Supports HDCP
• Storage: Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports, AMD Ryzen 5000/5000 G/4000 G/3000 Processors, 1x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2242/ 2260/ 2280 SSD module, Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD AMD A520 Chipset, 4x SATA III Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10
• LAN: Realtek RTL8111H, 10/100/1000 Mb/s auto negotiation, Half / Full duplex capability
• Audio codec: ALC897, 7.1 Channels, High Definition Audio, Hi-Fi (Front)
• USB: 1x USB 3.2 (Gen2) Type-C port (1 via internal headers), 6x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers), 6x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
• Expansion slot: AMD Ryzen 5000/3000 Series Processors, 1x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode)
  or, AMD Ryzen 5000 G/4000 G Series Processors, 1x PCIe 3.0 x16 Slot(x16 or x8/x4/x4 mode), AMD A520 Chipset, 2x PCIe 3.0 x1 Slot
• Dimension: Micro ATX Form Factor Dimension: 23.5cm x 20.8cm ( W x L )
• OS support: Supports Windows 10(64bit)/11(64bit)

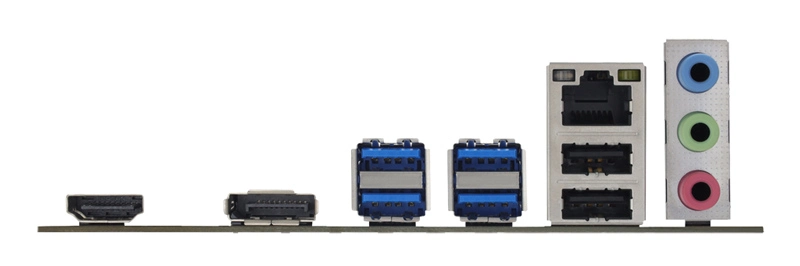

• Rear I/O:
  • 1x DP Port
  • 1x HDMI Port
  • 1x LAN port
  • 4x USB 3.2 (Gen1) Ports
  • 2x USB 2.0 Ports
  • 3x Audio Jack
• Internal I/O:
  • 4x SATA III (6.0Gb/s) Connectors
  • 2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
  • 1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
  • 1x USB 3.2 (Gen2) Type-C Header
  • 1x 8-Pin Power Connector
  • 1x 24-Pin Power Connector
  • 1x CPU Fan Connector
  • 1x System Fan Connector
  • 1x Front Panel Header
  • 1x Front Audio Header
  • 1x Internal Stereo Speaker Header
  • 1x Clear CMOS Header
  • 1x COM Port Header
  • 1x TPM Header
