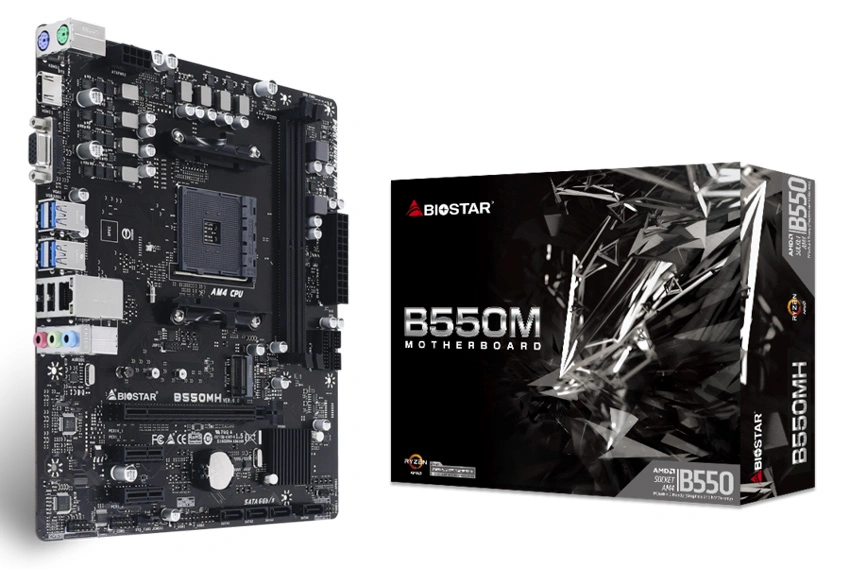

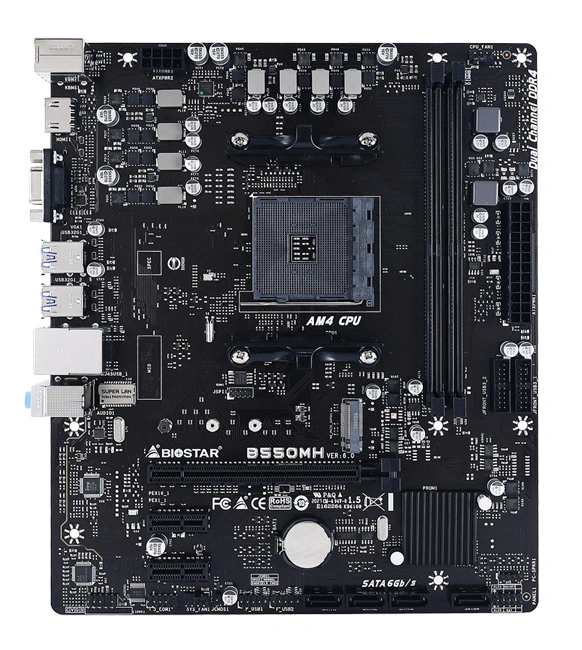

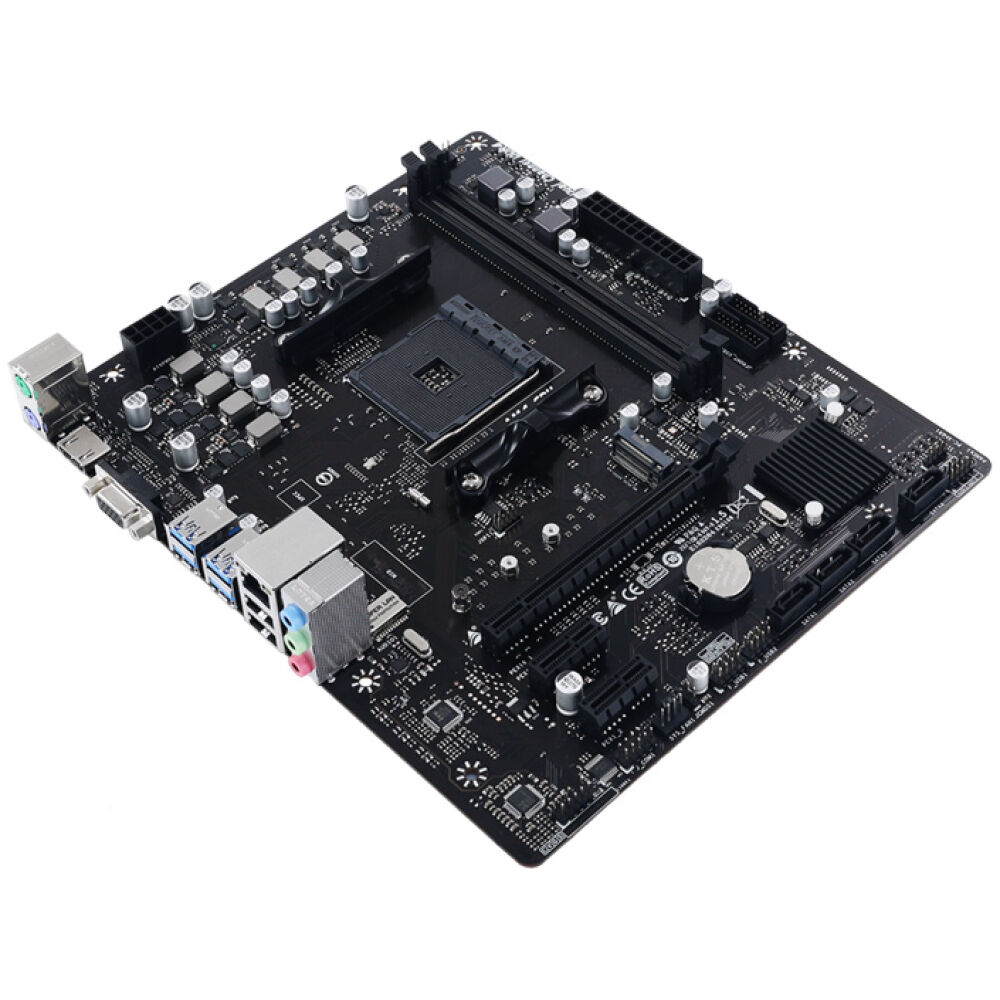

BIOSTAR μητρική B550MH, 2x DDR4, AM4, USB 3.2, uATX, Ver. 3.0

Τεχνικά Χαρακτηριστικά

• Chipset: AMD B550
• CPU Support: Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors
• Memory: 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory (3rd Gen AMD Ryzen Processors (Matisse CPUs), 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs)
• Integrated video: By CPU model, Supports DX12, HDCP
• Storage: 4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10, 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module, Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) – NVMe/ AHCI SSD, Supports SATA III (6.0Gb/s) SSD
• LAN: Realtek RTL8111H, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability, Supports Super LAN Surge Protection
• Audio codec: ALC887 (7.1 Channels, High Definition Audio, Hi-Fi (Front)
• USB: 8x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers), 6x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
• Expansion slot: 1 x PCIe 4.0/ 3.0 x 16 Slot, 2x PCIe 3.0 x 1 Slot
• Dimension: Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
• OS support: Supports Windows 10(64bit)

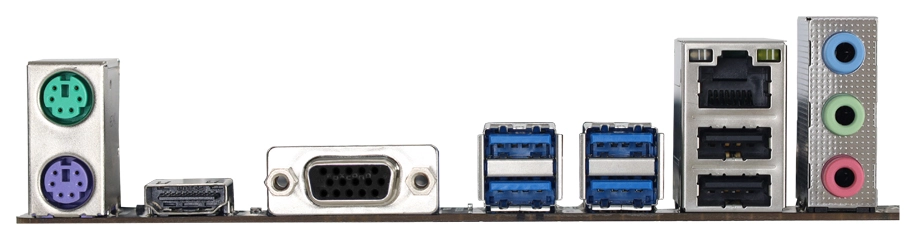

• REAR I/O:
  • 1x PS/2 Keyboard
  • 1x PS/2 Mouse
  • 1x HDMI Port
  • 1x VGA Port
  • 1x LAN port
  • 4x USB 3.2 (Gen1) Ports
  • 2x USB 2.0 Ports
  • 3x Audio Jack
• INTERNAL I/O:
  • 4x SATA III (6.0Gb/s) Connectors
  • 2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
  • 2x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
  • 1x 8-Pin Power Connector
  • 1x 24-Pin Power Connector
  • 1x CPU Fan Connector
  • 1x System Fan Connector
  • 1x Front Panel Header
  • 1x Front Audio Header
  • 1x Clear CMOS Header
  • 1x Internal Stereo Speaker Header
  • 1x COM Port Header
