BIOSTAR μητρική H610MH-D5, 2x DDR5, s1700, uATX, GbE LAN, 7CH, Ver. 6.3

Τεχνικά Χαρακτηριστικά

• Chipset: Intel H610
• CPU support: Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel® Celeron processors in the LGA1700 package
• Memory:
  • Supports Dual Channel DDR5 4800
  • 2x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory
  • Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module
  • Support Intel® Extreme Memory Profile (XMP) memory modules
• Integrated video: Supports DX12, Supports HDCP
• Storage:
  • Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports Intel H610 Chipset
  • 1x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
  • Supports M.2 Type 2242 /2260 /2280 SSD module
  • Supports PCI-E 3.0 x4 (32Gb/s) – NVMe/ AHCI SSD & SATA SSD
  • 4x SATA III Connector (6Gb/s)
• LAN: Intel I219V, 10/100/1000 Mb/s auto negotiation, Half / Full duplex capability
• Audio codec: ALC897, 7.1 Channels, High Definition Audio
• USB: 4x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers), 8x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
• Expansion slot:
  • INTEL 12th/13th Processors
  • 1x PCIe 4.0 x16 Slot
  • Intel H610 Chipset
  • 1x PCIe 3.0 x1 Slot
• Dimension: Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
• OS support: Supports Windows 10 (64bit) / 11(64bit)

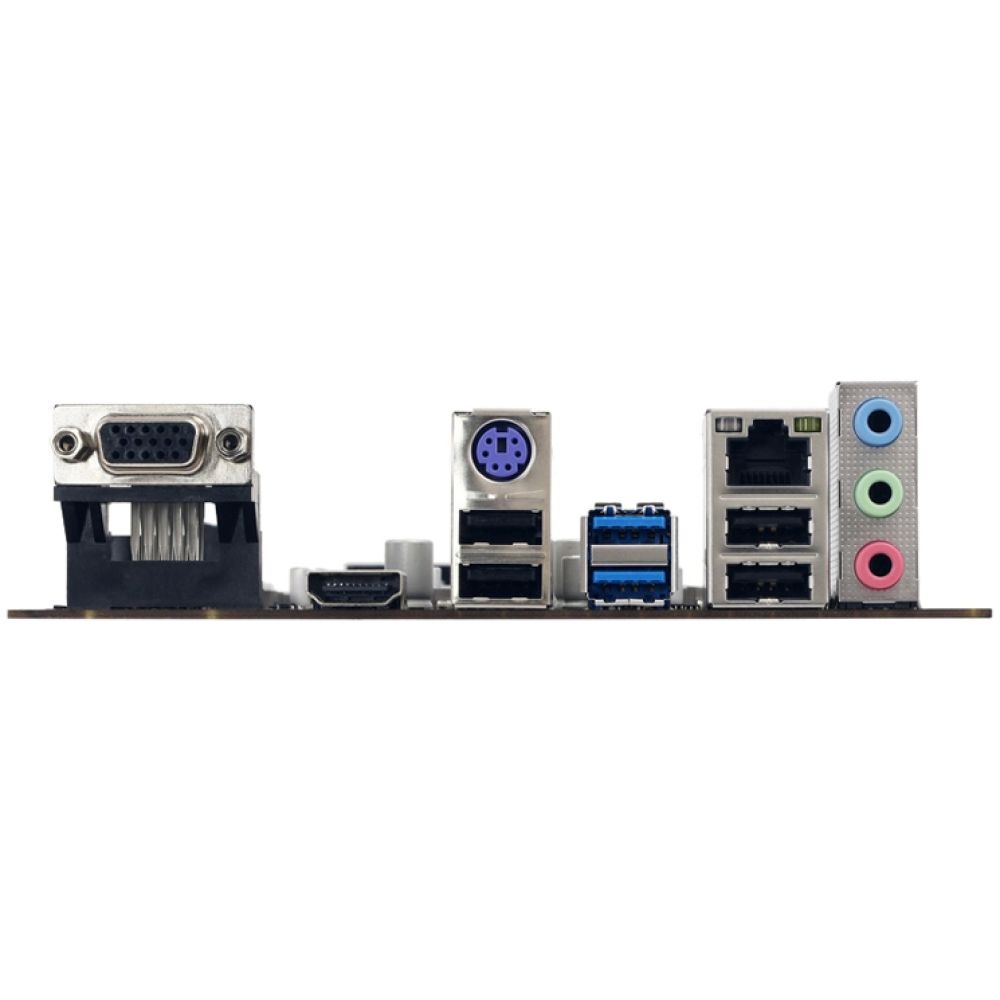

• Rear I/O:
  • 1x PS/2 Keyboard/ Mouse Port
  • 1x HDMI
  • 1x VGA Port
  • 2x USB 3.2 (Gen1) ports
  • 4x USB 2.0 ports
  • 1x LAN port
  • 3x Audio Jack
• Internal I/O:
  • 4x SATA III Connectors (6Gb/s)
  • 2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
  • 1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
  • 1x 8-Pin Power Connector
  • 1x 24-Pin Power Connector
  • 1x CPU Fan Connector
  • 1x System Fan Connector
  • 1x Front Panel Header
  • 1x Front Audio Header
  • 1x Internal Stereo Speaker Header
  • 1x Clear CMOS Header
  • 1x COM Port Header
  • 1x TPM Header
