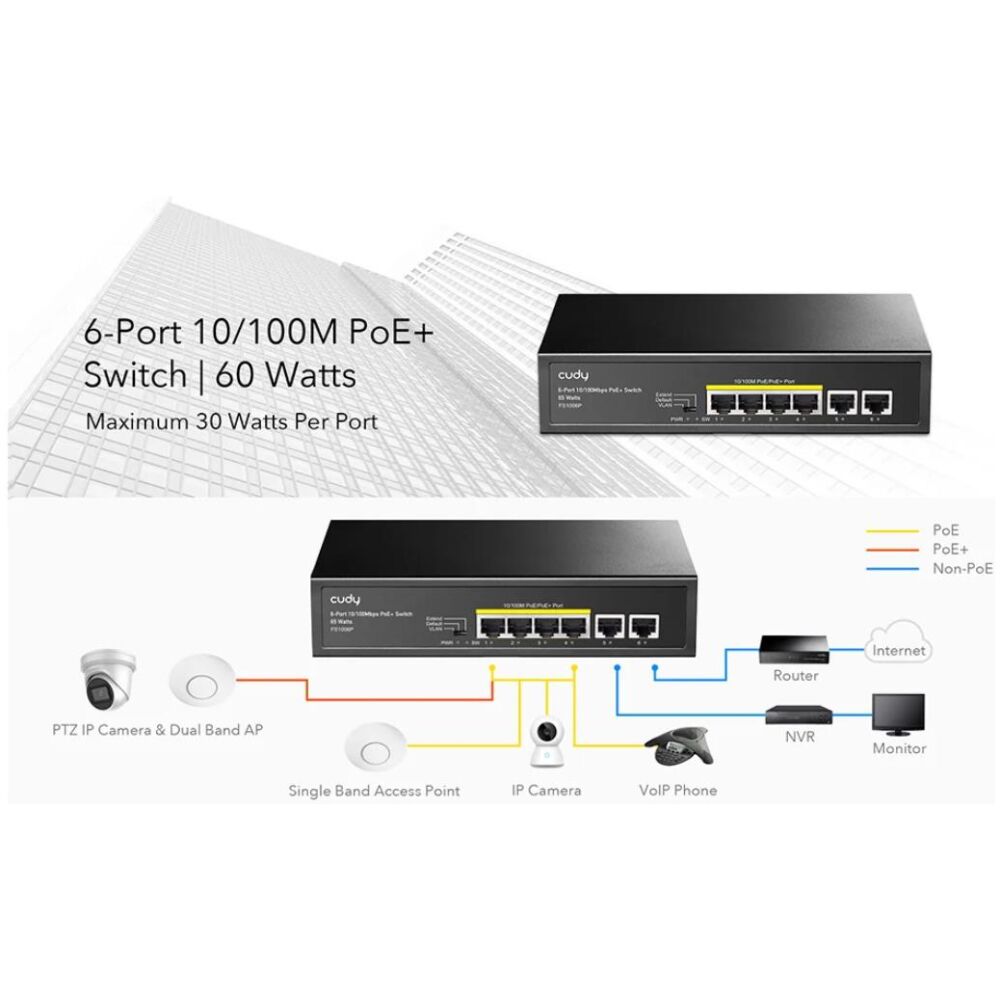

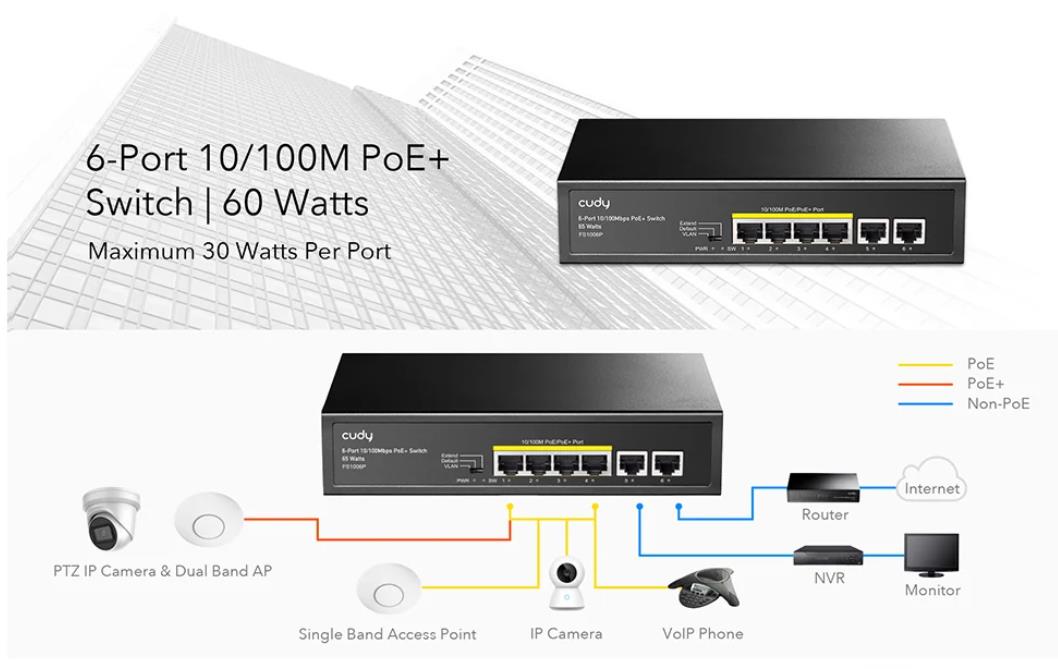

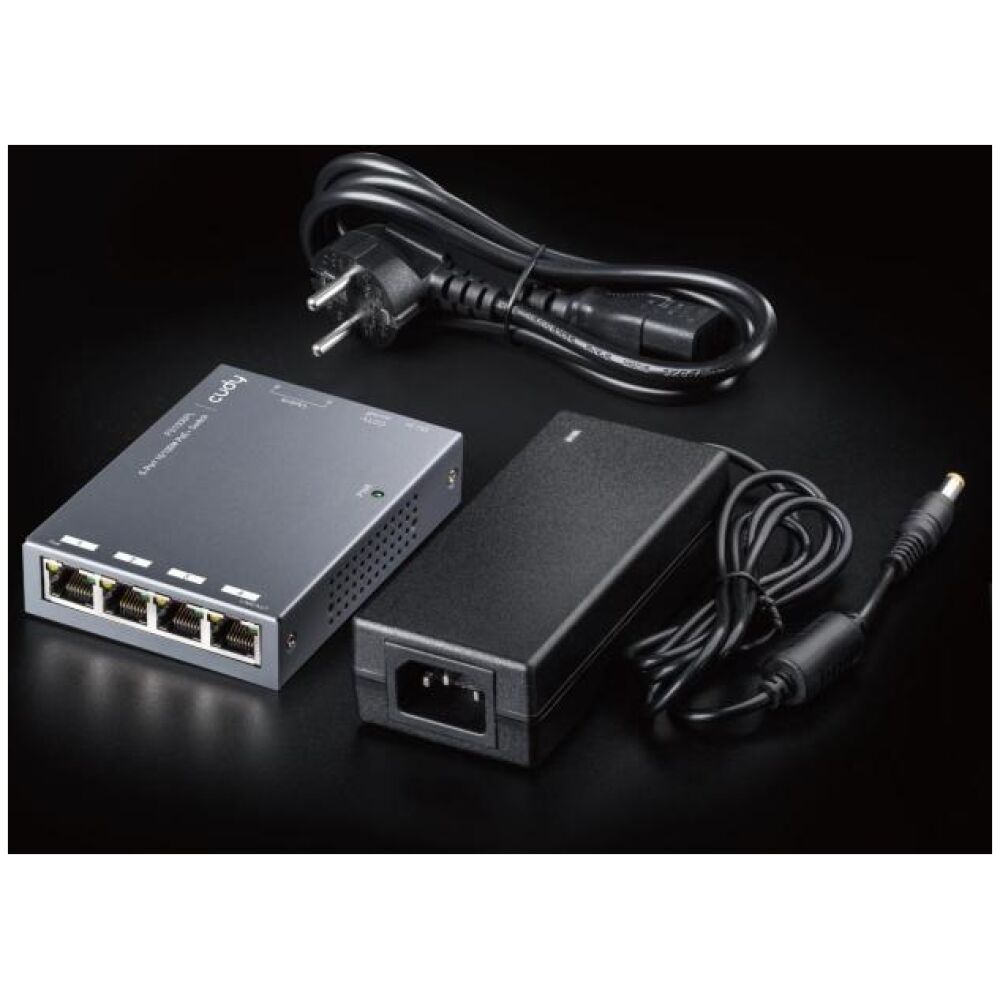

CUDY FS1006P 4+2Port 10/100M PoE+ SWITCH, 60W

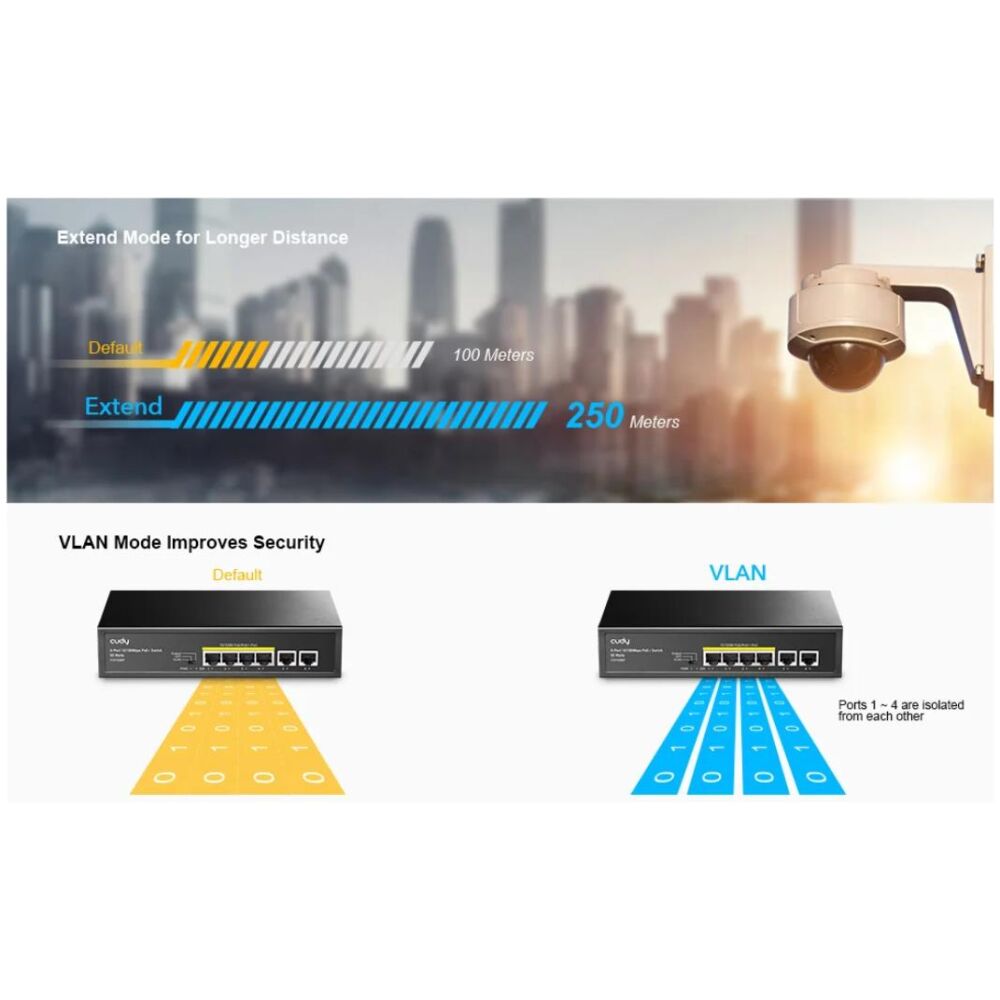

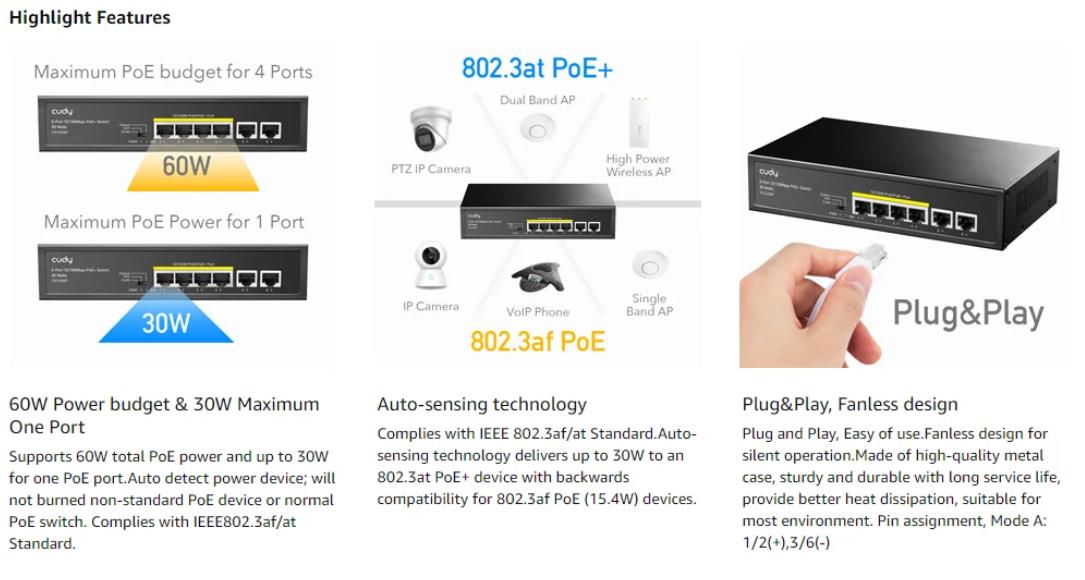

A wall-mounted 6-FE PoE switch with a 65W power supply and a silent cooling system.4× FE with 802.3at/af Mode A PoE2× Uplink FE65W Power SupplyDefault/VLAN/Extend ModesWatchdog under VLAN or Extend ModesDesktop, Wall-Mount200×118×44 mm Model VersionFS1006P 2.0InterfacesPhysical ButtonsVLAN/Default/Extend DIP Switch10/100 Mbps RJ45 Ports210/100 Mbps RJ45 PoE Ports4Max Power on a Single PoE Port30WPoE Port NotesPoE ports support 802.3at/af standards.Extend Mode Ports#1~#4VLAN Mode Ports#1~#4LEDPowerLink/ACT of Each Ethernet PortDIP Mode (SW)Power InputAC InletPerformanceCopper Speed and DistanceCat. 3 or higher cable: 100 meters at 10 MbpsCat. 5 or higher cable: 100 meters at 100 MbpsCat. 5e or higher cable: 250 meters at 10 MbpsCopper Speed and Distance Note250-meter transmission is only available on the Extend Mode ports.MAC Address Table1024Max Switching Capacity1.2 GbpsMax Forwarding Rate0.8928 MppsPacket Buffer448 KbitPowerPower MethodsACACInput: 100 V – 240 V, 50 HzOutput: 52 V, 1.25 AMax Power Consumption65WMax Power Excluding PoE5WSwitching802.3 Protocols802.3i 10BASE-T802.3u 100BASE-T802.3x Flow Control802.3af PoE802.3at PoEReliabilityGrounding MethodsThree-Prong PlugGrounding PointEnvironmentOperating Temperature: -20~50 ℃ (-4~122 ℉)Storage Temperature: -40~85 ℃ (-40~185 ℉)Operating Humidity: 0~90% non-condensingStorage Humidity: 0~95% non-condensingMechanicalDimension200×118×44 mm7.87×4.65×1.73 inchesCasing MaterialMetalInstallationDesktopWall-mountPackage ContentFS1006PPower CordInstallation Guid
