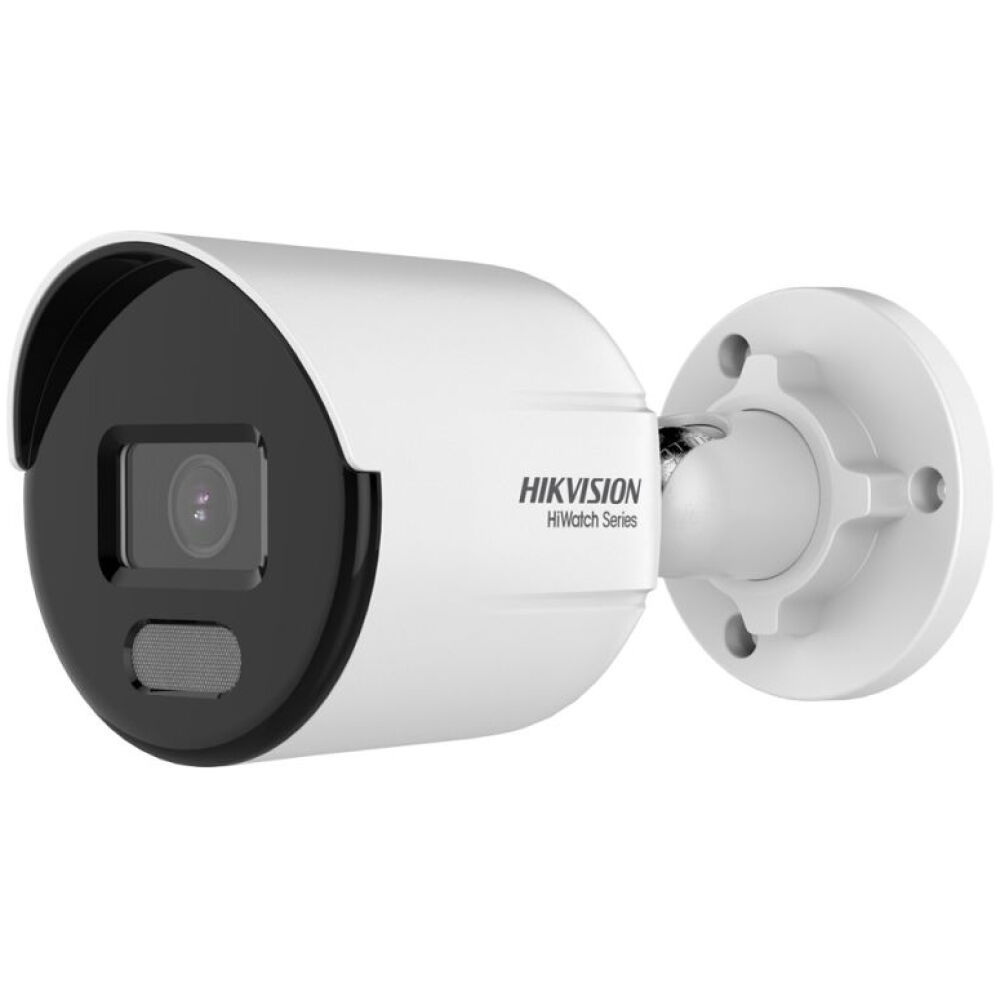

HIKVISION HIWATCH IP κάμερα ColorVu HWI-B129H, 2.8mm, 2MP, IP67, PoE

Τεχνικά Χαρακτηριστικά

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Max. Resolution: 1920 x 1080
• Day & Night: 24/7 color imaging
• Min. Illumination: Color: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter Speed: 1/3 s to 1/100, 000 s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focal Length & FOV: 2.8mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1°
• Lens Mount: M12
• Aperture: F1.0

Illuminator

• Smart Supplement Light: Yes
• White Light Range: Up to 30m

Video

• Main Stream: 50Hz: 25fps (1920×1080, 1280×720), 60Hz: 30fps (1920×1080, 1280×720)
• Sub-Stream: 50Hz: 25fps (640×480, 640×360), 60Hz: 30fps (640×480, 640×360)
• Video Compression:
  • Main stream: H.265/H.264/H.265+/H.264+
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region of Interest (ROI): 1 fixed region for main stream

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: BLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

General

• Basic Event: Motion detection, video tampering alarm, exception
• Power:
  • 12 VDC +/- 25%, 0.4 A, max. 5 W, Φ 5.5 mm coaxial power plug
  • PoE: (802.3af, Class 3, 36 V to 57 V), 0.15 A to 0.2 A, max. 6.5 W
• Linkage Method: Upload to FTP, notify surveillance center, send email, trigger capture
• Camera Material: Aluminum alloy body
• Protection: IP67 (IEC 60529-2013)
• Camera Dimension: Φ 76.6 x 164.4mm
• Camera Weight: Approx. 400g
• Operating Conditions: -30 °C to 60 °C, Humidity: 95% or less (non-condensing)
