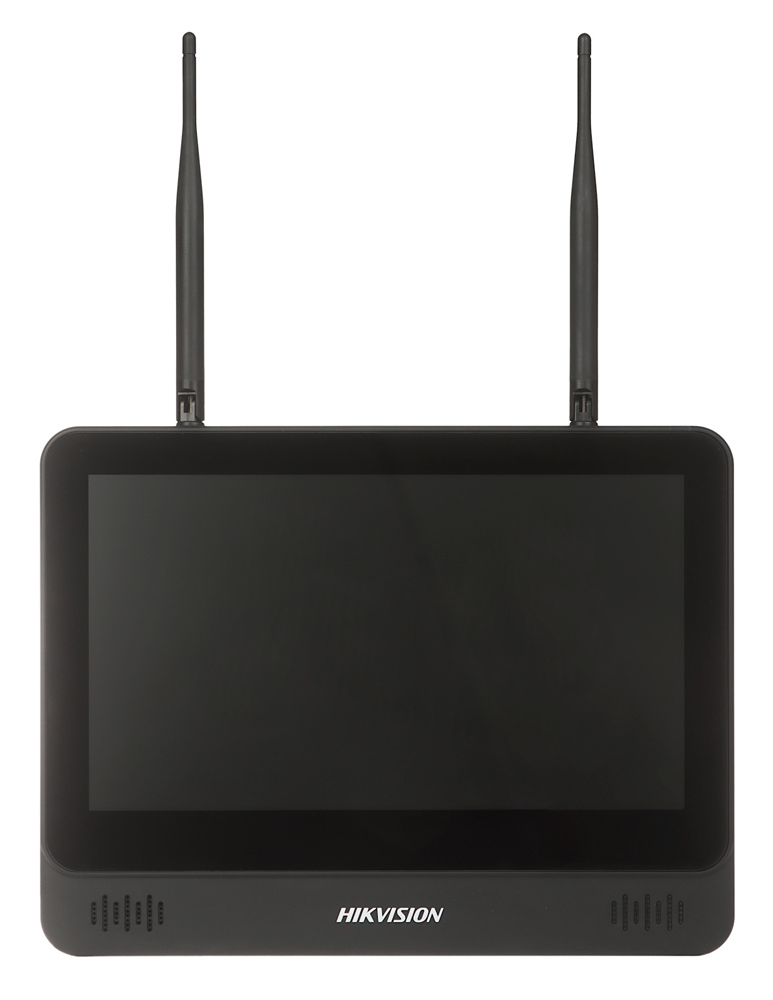

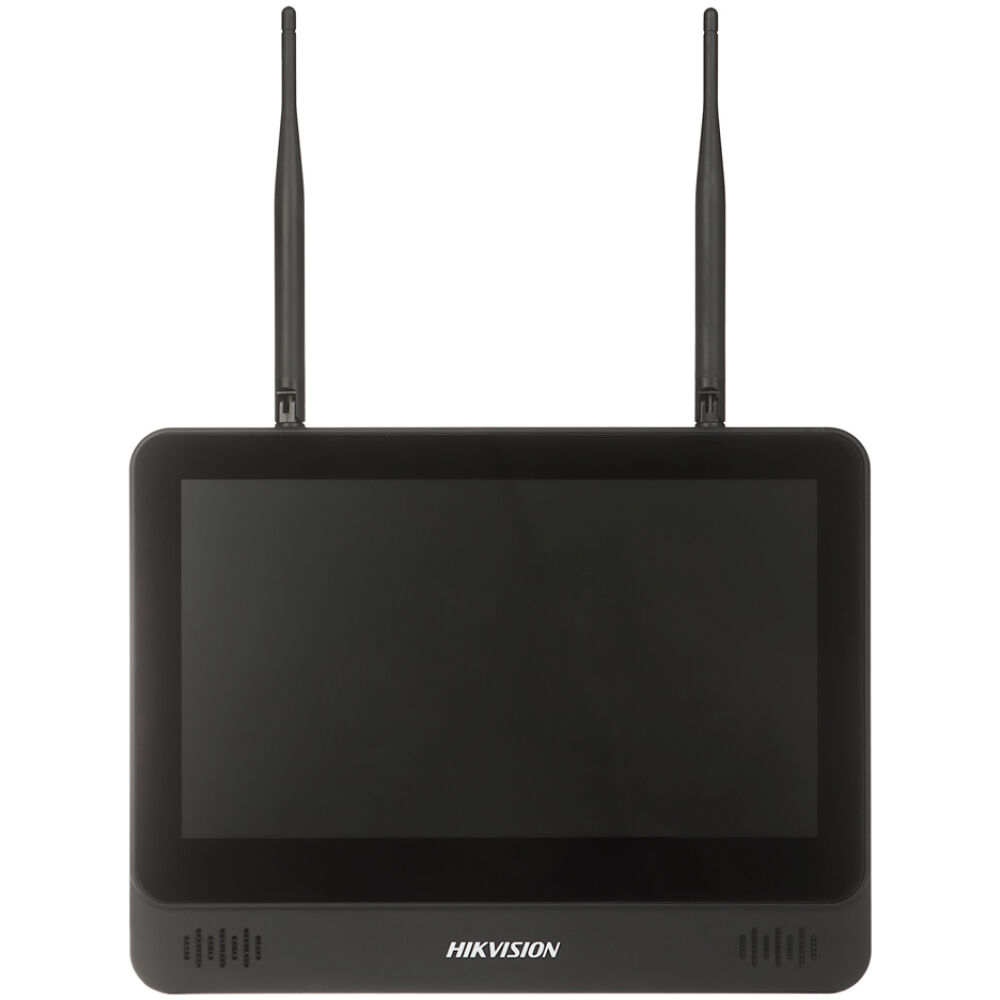

HIKVISION HIWATCH NVR καταγραφικό DS-7604NI-L1/W, Wi-Fi, 4 κανάλια

Τεχνικά Χαρακτηριστικά

Video and Audio

• IP Video Input: 4-ch
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI Output: 1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
• LCD Output: 11.6-inch LCD, 1366 ? 768
• Audio Output: 1-ch, RCA (Linear, 1 KΩ), 1-ch, built-in speaker
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding Format: H.265+/H.265/H.264+/H.264
• Recording Resolution: 6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 4-ch
• Decoding Capability: 4-ch@4 MP (15 fps), 4-ch@1080p (30 fps)
• Stream Type: Video, Video & Audio

Network

• Remote Connection: 16
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Wireless Parameter

• Frequency Band: 2.4 GHz

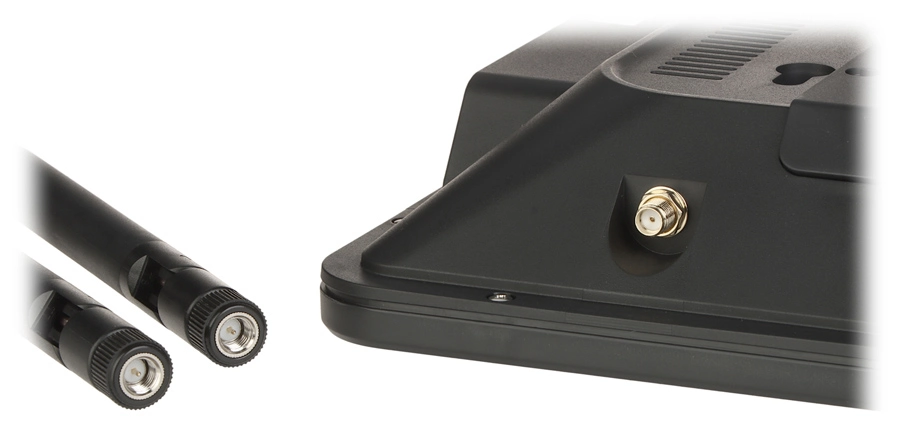

• Antenna Structure: 2x 2MIMO
• Transmission Speed: 300 Mbps
• Transmission Standard: IEEE 802.11b/g/n

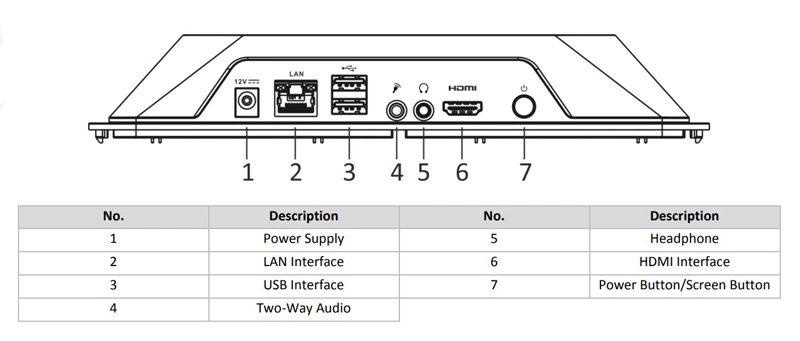

Auxiliary Interface

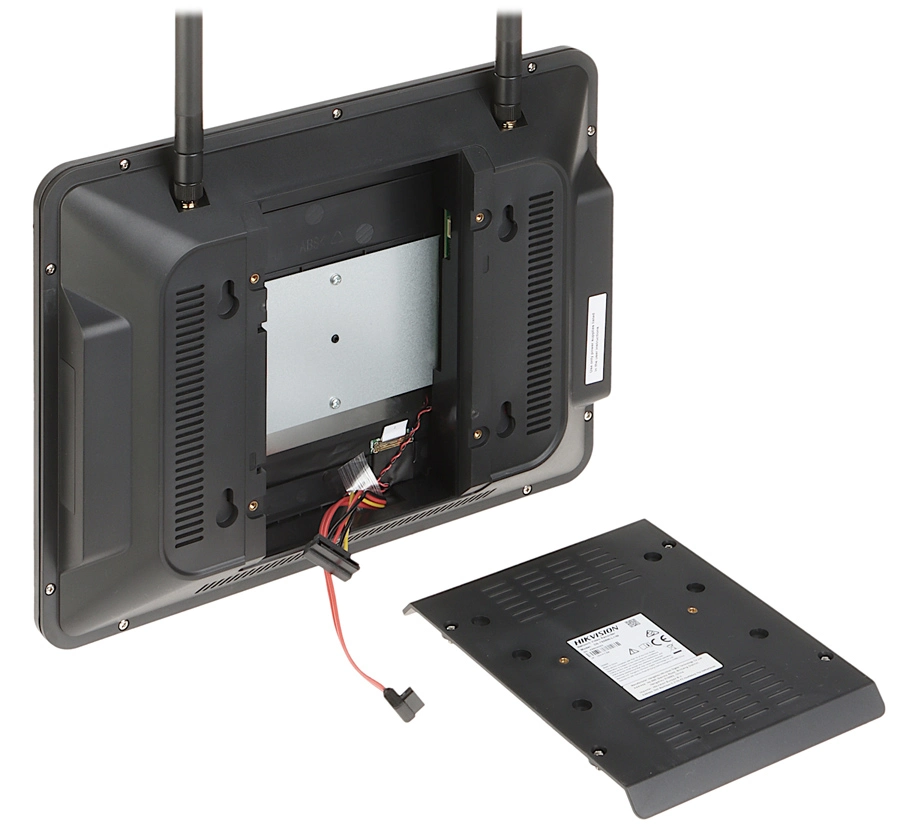

• SATA: 1
• Capacity: Up to 6 TB capacity
• USB Interface: 2x USB 2.0

General

• Power Supply: 12 VDC, 1.5 A
• Consumption: </= 10 W (without HDD)
• Working Temperature: 0 °C to 40 °C
• Working Humidity: 10 to 90 %
• Dimension (WxDxH): 300 x 230 x 46.3 mm
• Weight: </=1 kg
