HIMAX industrial PoE switch PS1402G-I, 4x GE PoE & 2x GE θύρες, έως 1000Mbps

Τεχνικά Χαρακτηριστικά

-Interfaces:
4x 10/100/1000Base-T PoE ports (Data/Power)
2x 10/100/1000Base-T uplink RJ45 ports (Data)
2 set of V+, V- redundant DC power interface (5P Phoenix terminal)
-Ethernet support: Port 1-6 support 10/100/1000Base-T, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
-Twisted pair transmission: 10BASE-T: Cat3, 4, 5 UTP (</=100 meter), 100BASE-TX: Cat5 or later UTP (</=100 meter), 1000BASE-T: Cat5e or later UTP (</=100 meter)
-Network Protocol: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-T/TX, IEEE802.3ab 1000BASE-T, IEEE802.3x.
-Forwarding Mode: Store and Forward
-Switching Capacity: 12Gbps
-Forwarding Rate @64byte: 8.93Mpps
-MAC: 4K
-Buffer Memory: 1M
-Jumbo Frame: 10K
-LED Indicator: Power indicator: PWR (Green), Network indicator: 1-4 (Link/Act)/(Green), 5-6 (Link/Act)/(Green), Speed/(Orange), POE indicator: PoE (Orange)
-PoE Port: Port 1 to 4 IEEE802.3af/at @ POE
-Power Supply Pin: Default 1/2(+), 3/6(-)
-Max Power: Per Port 30W, IEEE802.3af/at
-Total PWR/Input Voltage: 60W/48VDC, 120W/48VDC
-Power Consumption: Standby: <2W, Full load: <60W / Standby: <2W, Full load: <120W
-Power Supply: No, optional 48V/60W or 48V/120W industrial power supply

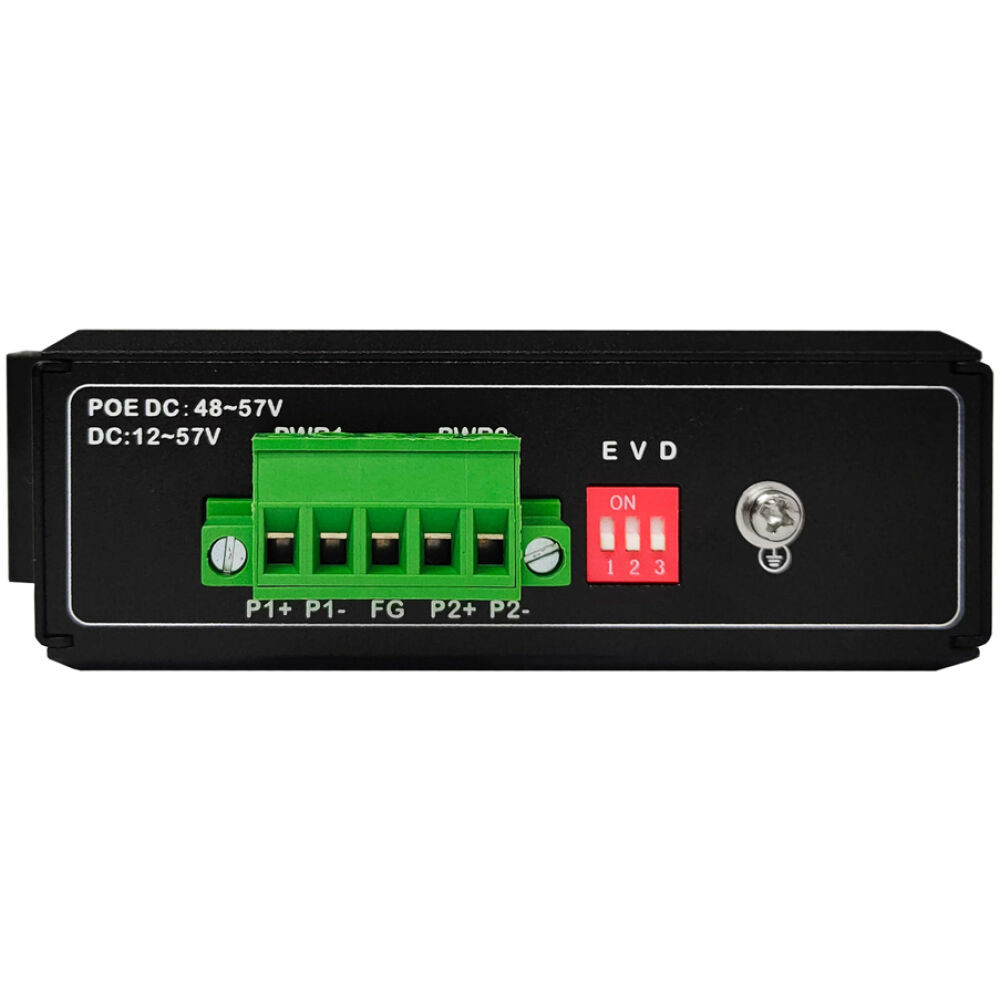

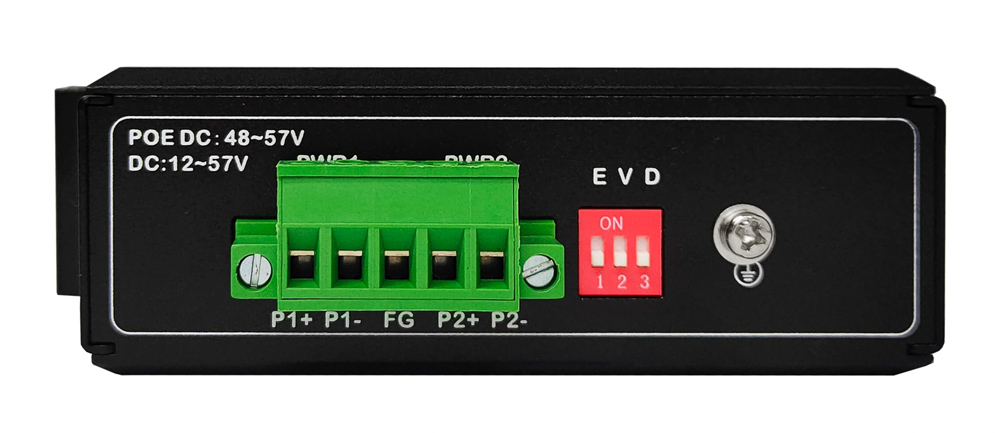

-Working Voltage: 48-57VDC, 5P industrial Phoenix terminal, support anti-reverse protection.
-IP protection level: IP40
-Working temperature: -40 °C ~ 85 °C

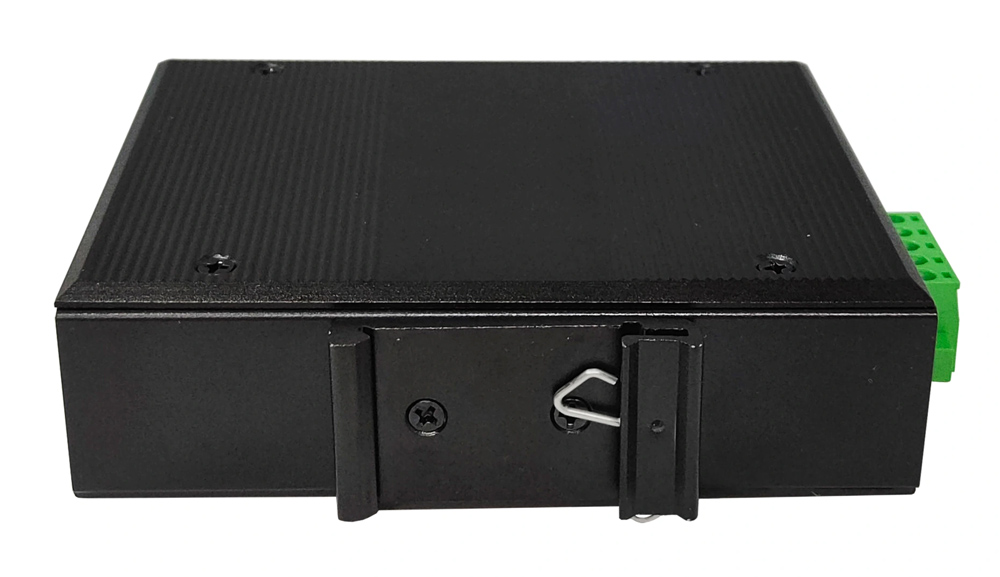

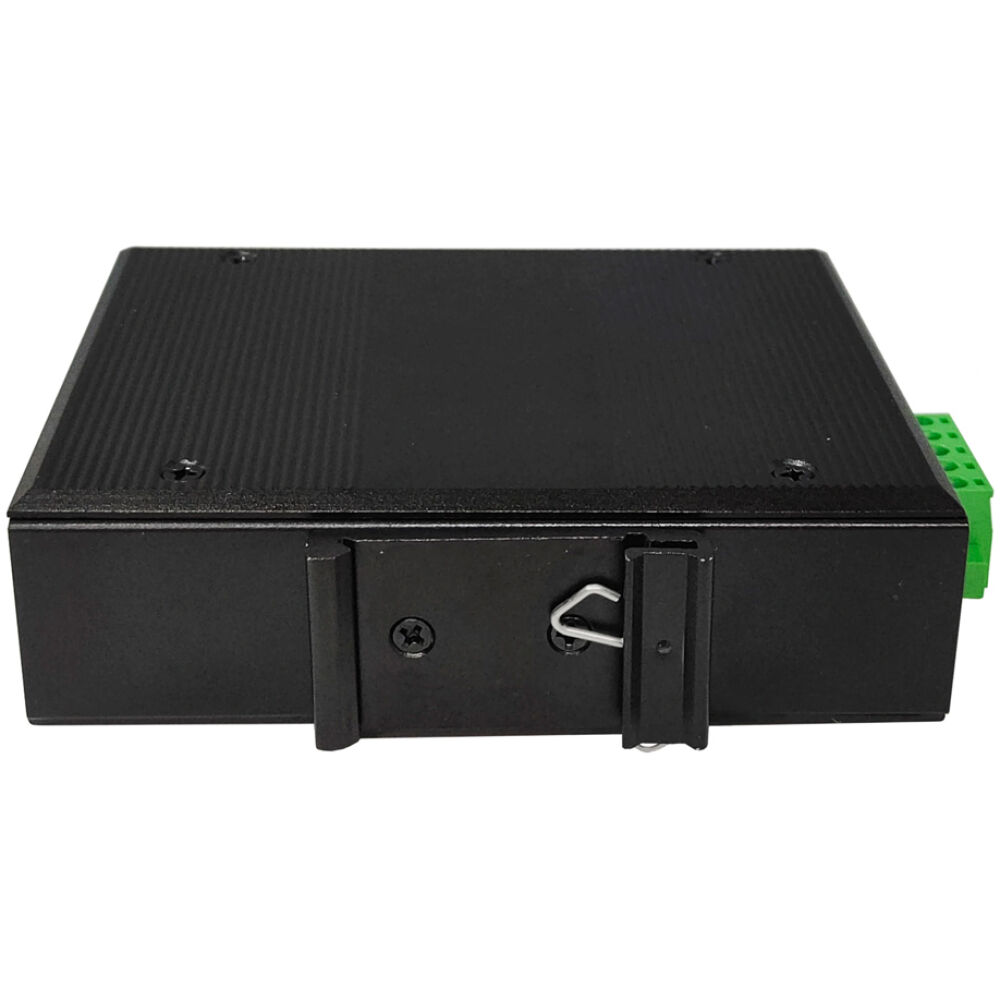

-Installation: Rail-type
-Dimensions: 120 x 35 x 100mm
