HIMAX PoE switch PS1802G, 8x Ethernet PoE & 2x Ethernet θύρες, έως 1000Mbps

Τεχνικά Χαρακτηριστικά

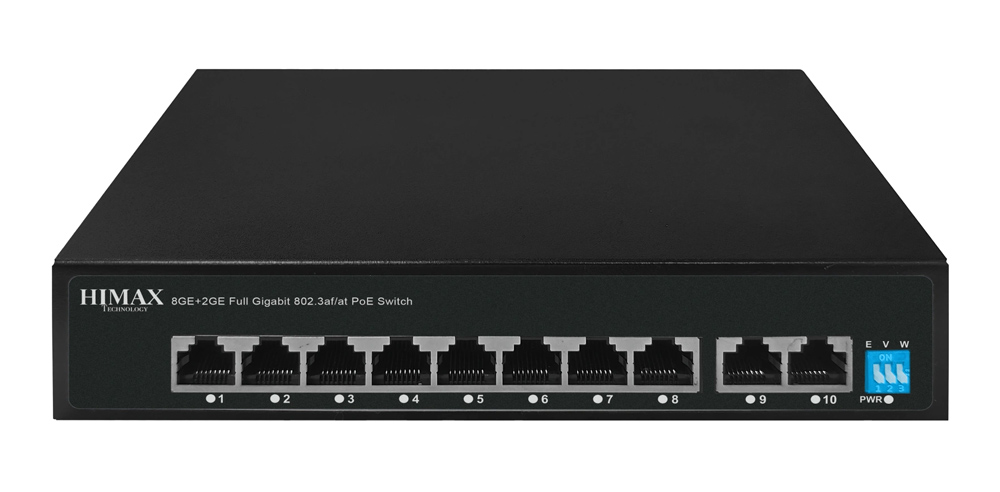

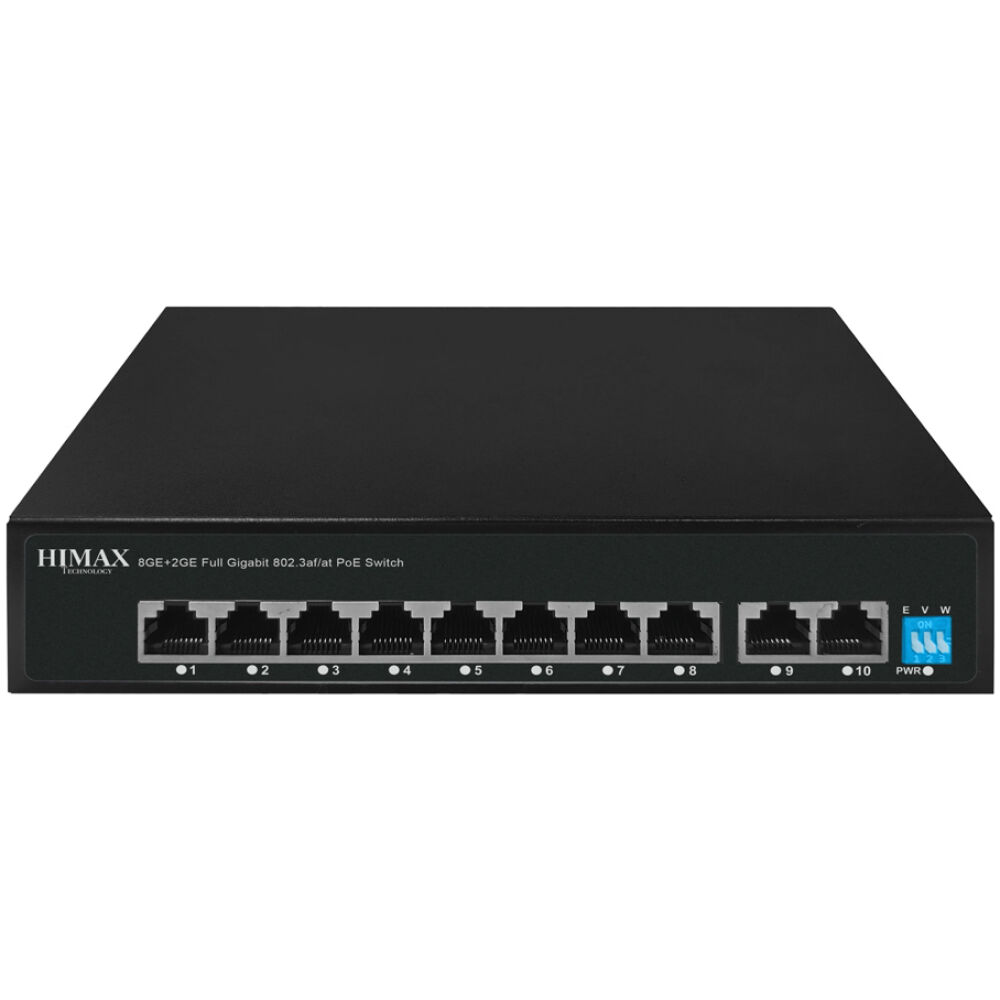

-Interfaces: 8x 10/100/1000Base-T/TX PoE ports (Data/Power), 2x 10/100/1000Base-T/TX Uplink RJ45 ports (Data)
-POE Port: Port 1-8 support PoE
-Feature: With the Dial code switch,
E: AI Extend 300meters transmission;
V: Turn on, 1-8 Port support each port Isolation & VLAN;
Support Watchdog function by default: 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale.
-Network Protocol: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.
-Ethernet Port Feature: 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
-Fiber Port Feature: Store and Forward
-Switching Capacity: 20Gbps
-Forwarding Mode: 14.88Mpps
-MAC: 4K
-Buffer Memory: 1.25M
-Twisted Pair Transmission: 10BASE-T: Cat5 UTP (</=300 meter), 100BASE-TX: Cat5 or later UTP (</=100 meter)
-Power Supply Pin: Default 1/2(+), 3/6(-)
-MAX/AVERAGE Power Per Port: 30W/15.4W
-Total PWR/Input Voltage: 120W
-Power Consumption: Standby: <4W; Full load: <120W
-LED Indicator: Power indicator: PWR (Green), Network indicator: 1-8(Link/Act)/(Green), 9-10(Link/Act)/(Green)
-Power Supply: Build-in power adaptor AC100~240V 50-60Hz,120W
-Operation Temperature/Humidity: -20 °C ~ +55 °C/5% ~ 90% RH non condensing
-Installation: Desktop type, wall mounted
-Protection: IP30, IEC61000-4-2 (ESD), IEC61000-4-5 (Lightning protection/Surge)
-Dimension: 195 x 135 x 40mm
