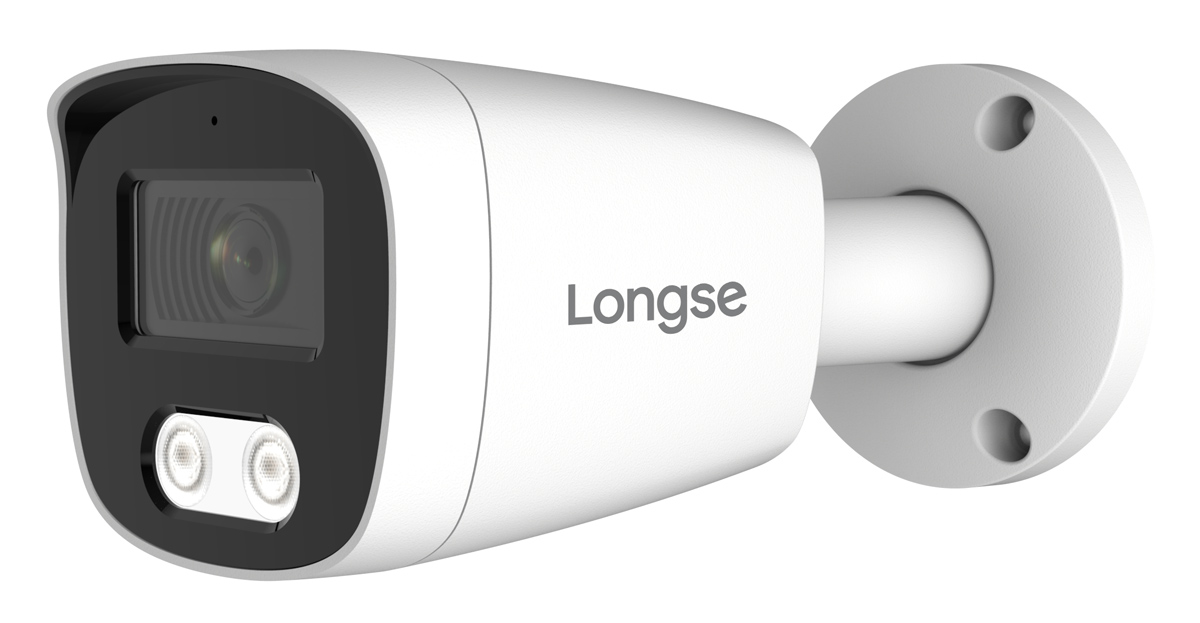

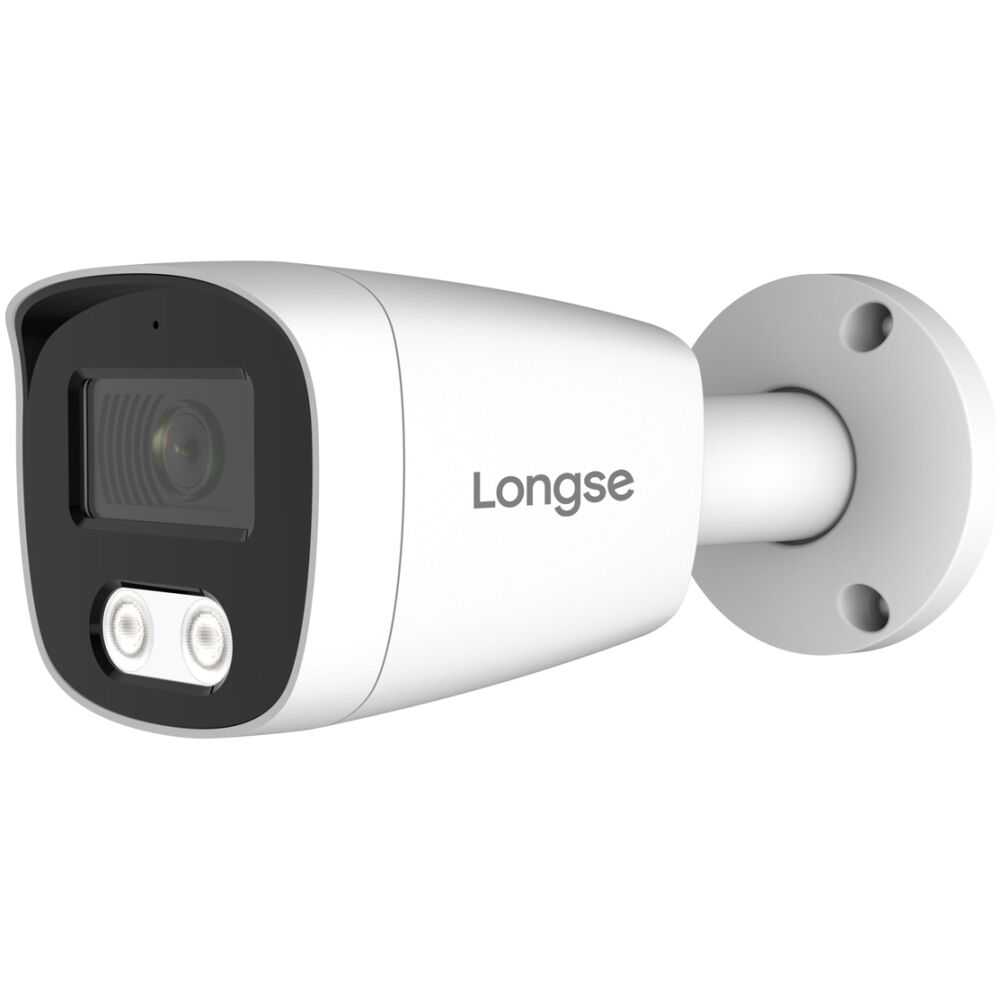

LONGSE IP κάμερα BMSCFG400 με μικρόφωνο, 2.8mm, 4MP, αδιάβροχη IP67, PoE

Τεχνικά Χαρακτηριστικά

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS Sensor
• Resolution: 4MP
• Effective Pixels: 2560(H)x1440(V)
• Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
• Audio Compression: G711A/U,AAC
• TV System: PAL/NTSC
• Electronic Shutter Time: Auto: 1/3-1/100000Sec
• Minimun Illumination: Color: 0.03 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• S/N Ratio: 60dB
• Scanning System: Progressive
• Video Output: Network

Lens

• Focal Length & FOV: 2.8mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
• Lens Type: Fixed
• Focus Control: Fixed
• Aperture: F1.6

Night Vision

• Supplement LightL 42µ x 2PCS
• Supplement Light Distance: 25M
• Supplement Light Status: Auto Control
• Supplement Light Power On: Smart, Manual & Timed mode

Network

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, Qos,802.1x
• ONVIF: Support ONVIF 19.12 (Profile S/T/G)
• P2P: Yes
• POE: Internal, Support IEEE 802.3af
• Video Delay: 0.3S (Within the Lan)
• Main Stream 1: 2688×1512 @25fps
• Main Stream 2: 2560×1440 @30fps
• Main Stream 3: 1920×1080 @30fps, 1280×720 @30fps
• Sub Stream 1: 1280×720 @30fps
• Sub Stream 2: 720×480 @30fps
• IE Brower: IE8-11, Google Chrome, Firefox, Mac Safari
• Smartphone: iPhone, Android

AI Function

• Intelligent Analysis Intrusion: Detection (based on human and Vehicle Detection), motion detection based on human detection

Camera Features

• Day/Night: Color/ B&W (IR-CUT )
• Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, FLK (Flicker Control), Video Tampering, HLC, Distortion
• Corridor Pattern: Support
• Defog Mode: Support
• ROI: Support
• BLC: Support
• WDR: DWDR
• Motion Detection: Support (support enable the detection based on human movement only)
• Privacy Masking: 3 Rectangular Zone
• Recording Mode: NVR/CMS/Web

Interface

• Audio: 1 Built-in MIC

General

• Camera type: Bullet
• Housing: Metal, IP67
• IR Cut Filter: Yes
• Operation Temperature: -20 °C ~ +60 °C RH95% Max
• Power Source: DC12V, 700mA

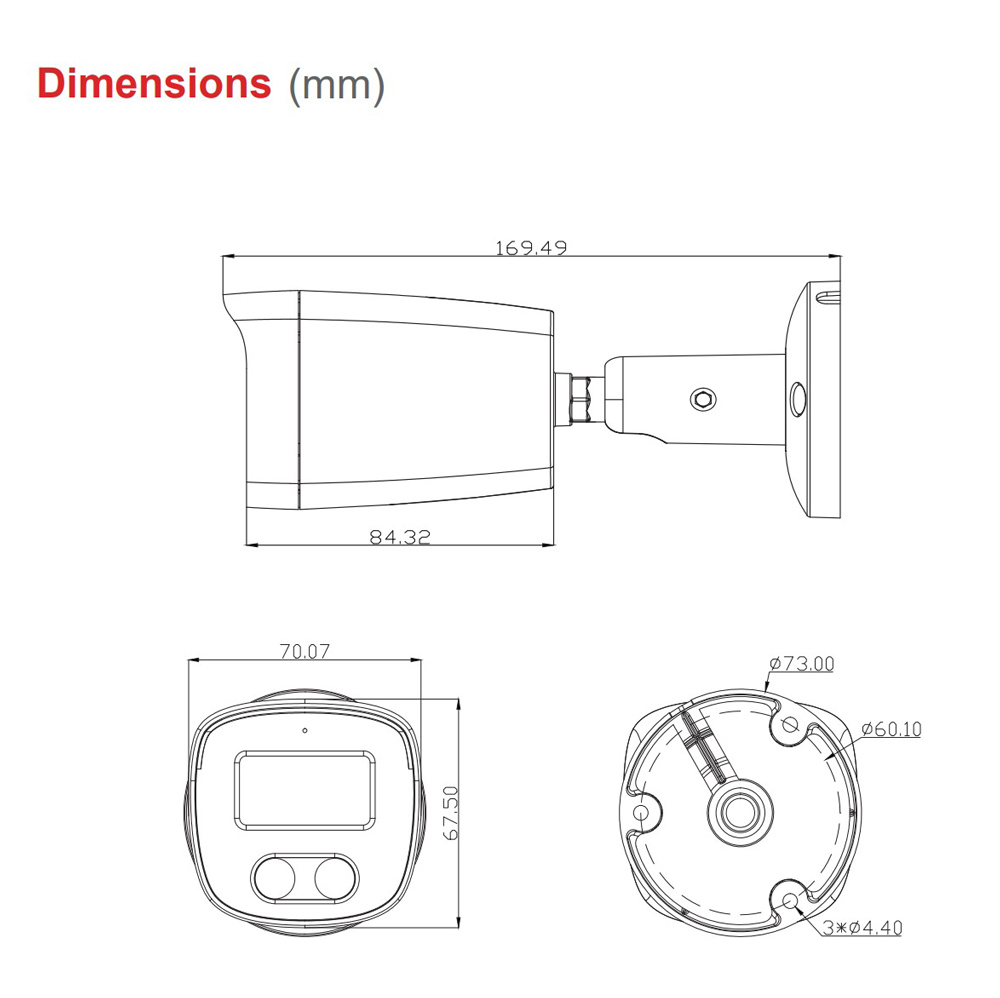

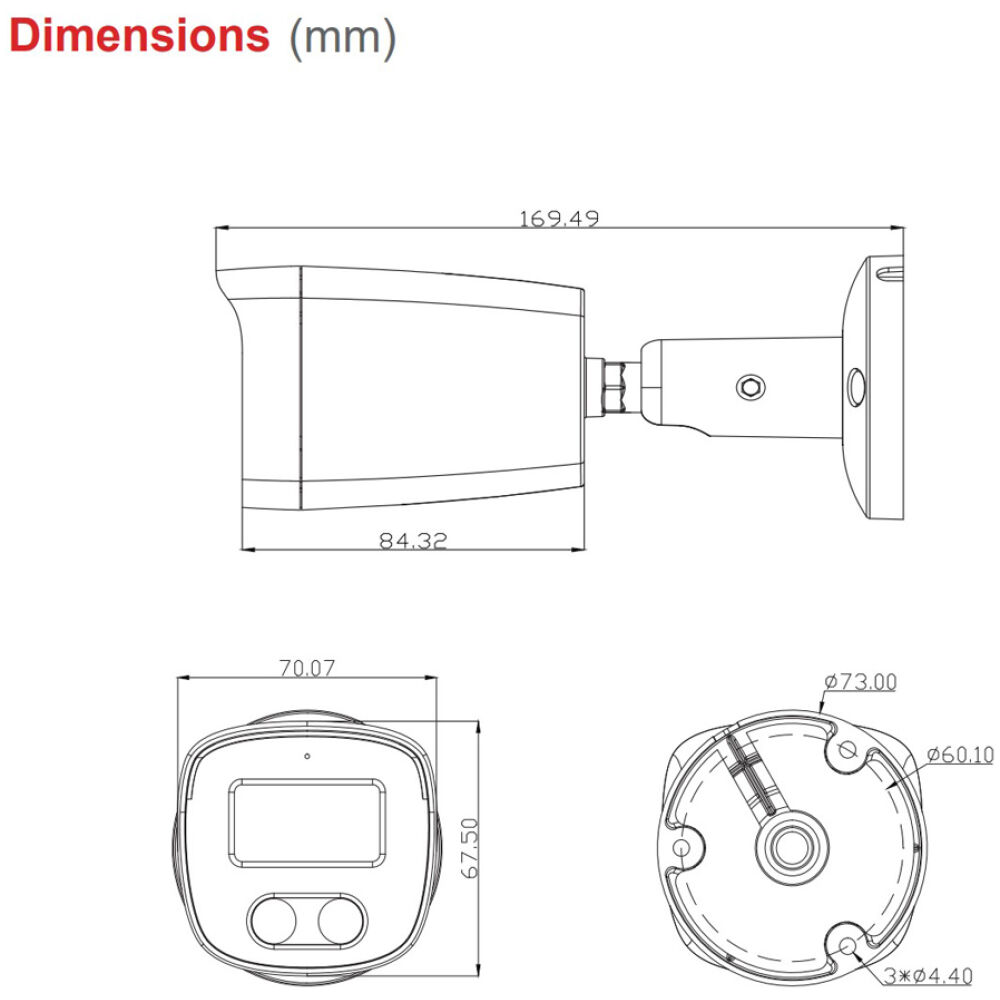

• Dimension: 70(W) x 67.5(H) x 169(L)mm
• Weight: 600g
