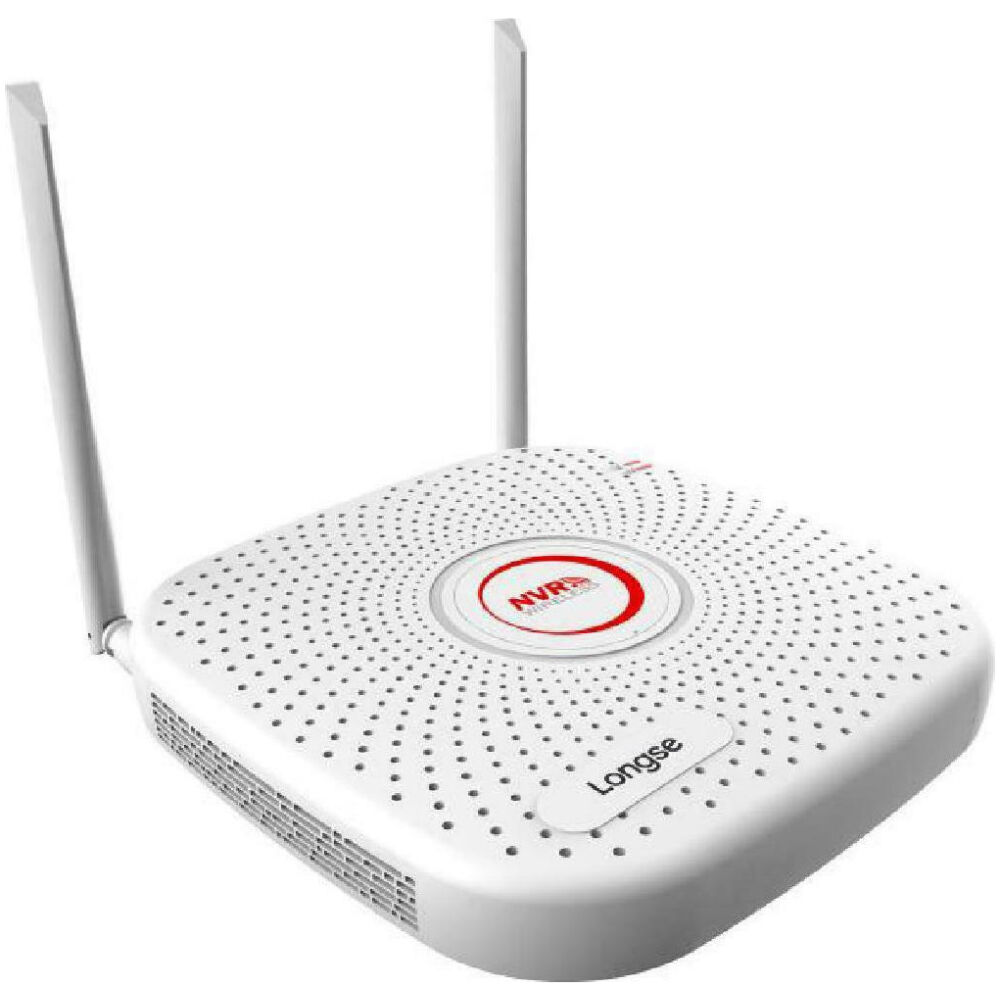

LONGSE NVR καταγραφικό NVR2108PGEW WiFi, H.265/H.264, 8 κανάλια

Τεχνικά Χαρακτηριστικά

• System
  • Main Processor: ARM Cortex A7 Quad-core Processor
  • Operating System: Embedded LINUX
• Video
  • Input: 9CH (3840×2160, 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc)
  • Output: 1 VGA, 1 HD
• Audio
  • Output: 1x 3.5mm audio interface
  • Audio Bit Rate: 64kbps
  • Audio Compression standard: G711u, G711a
• Alarm
  • Sensor Input: Όχι
  • Output: Όχι
  • Motion Detection: 9 Channel, MD Zones: 396 (22 ? 18)
  • Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips
• Display
  • HD1: Resolution: 4K(3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA: Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Display Split: 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4K
  • Digital Zoom: Ναι
  • OSD: Camera Title, Time, Recording, Motion Detection, Alarm
• Recording
  • Video Compression: H.264/H.265/H.264+/H.265+
  • Resolution: 4K(3840×2160), 25MP(2592×1944), 4MP(2688×1520), 3MP(2048×1536), 1080P(1920×1080), 960P(1280×960), 720P(1280×720), D1 (720×576/720×480)
  • Record Rate: PAL: 4K/8x25fps, 5MP/9x25fp, 4MP/9x25fp, 3MP/9x25fp, 1080P/9x25fp, 960P/9x25fp, 720P/9x25fp, D1/9x25fp, NTSC: 4K/8x30fps, 5MP/9x30fp, 4MP/9x30fp, 3MP/9x30fp, 1080P/9x30fp, 960P/9x30fp, 720P/9x30fp, D1/9x30fp
  • Record Mode: ManualTimerMotion Detection
• Playback & Backup
  • Local Sync Playback: 1CH 4K/30fps, 1CH 5MP/30fps, 1CH 4MP/30fps, 2CH 3M/30fps, 4CH 1080P/30fps, 4CH 960P/30fps, 4CH 720P/30fps, 9CH D1/30fps
  • Decode Capability: 4CH 1080P/30fps
  • Remote Sync Playback: Ναι
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Event Alarm
  • Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play, Frame Rewind, Digital Zoom
  • Backup Mode: Network/USB
• Network
  • Interface1: RJ45 10M/100M Adaptive Ethernet Interface
  • Incoming Bandwidth: Incoming Bandwidth?80M, wireless network bandwidth?28M
  • Network Functions: TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP,P2P
  • Onvif Version: Support Onvif 2.4
  • Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
  • CMS Software: Support Windows 7/ Windows 8/ Windows 10
  • Cloud Support(P2P): Ναι
  • Smartphone: iPhone, iPad, Android, Android Pad
  • WIFI: Support, WIFI Range: No Obstacles 300m Max.
• Storage
  • Interface Type: 1 SATA Hard Disk Interface (2.5″/3.5″ SATA)
  • Capacity: Up to 8TB capacity
• General
  • USB Interface: 2 USB 2.0 Interfaces
  • Power Supply: DC12V/2A
  • Working Environment: -10~55°C/10~90%
  • Διαστάσεις (WxDxH): 219 x 217 x 40(mm)
