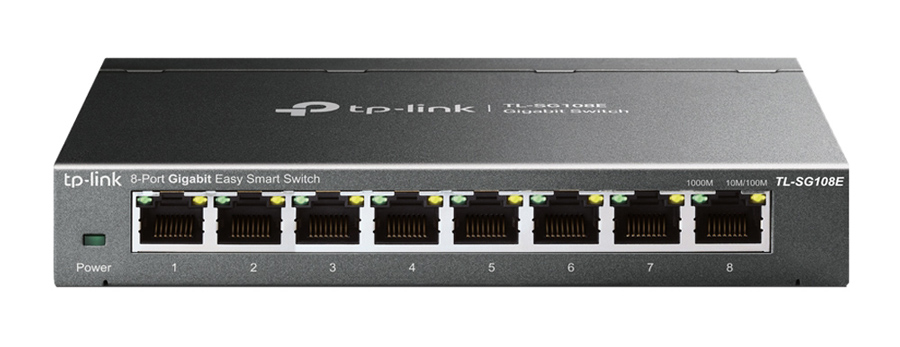

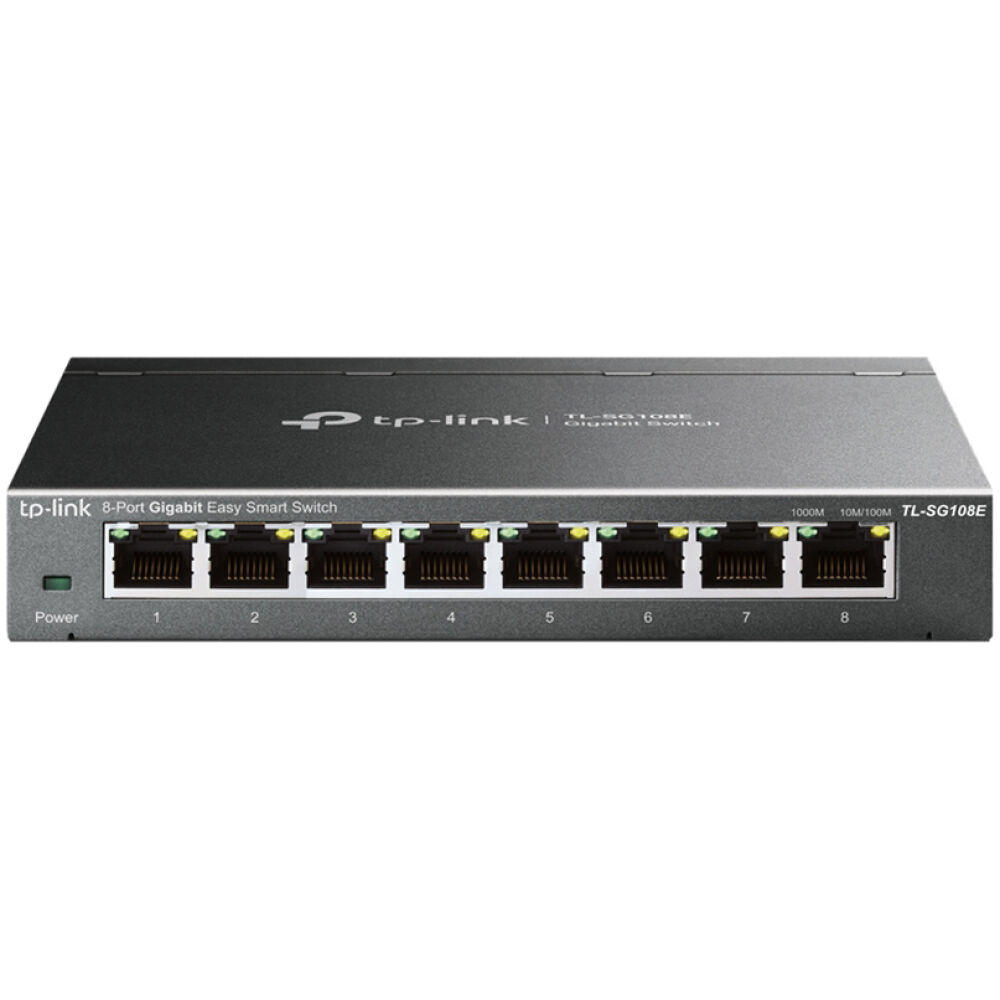

TP-LINK Easy Smart Switch TL-SG108E, 8-port 10/100/1000Mbps, Ver 6.0

Τεχνικά Χαρακτηριστικά

• Standards & Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 8x 10/100/1000Mbps RJ45, Auto-Negotiation, Auto-MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: External Power Adapter(Output: 5 VDC/ 0.6 A)
• Dimensions ( W x D x H ): 158 x 101 x 25 mm
• Max Power Consumption: 3.68 W (220 V/ 50 Hz)
• Max Heat Dissipation: 12.55 BTU/h
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB
• Quality of Service: Support Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Transmission Method: Store-And-Forward
