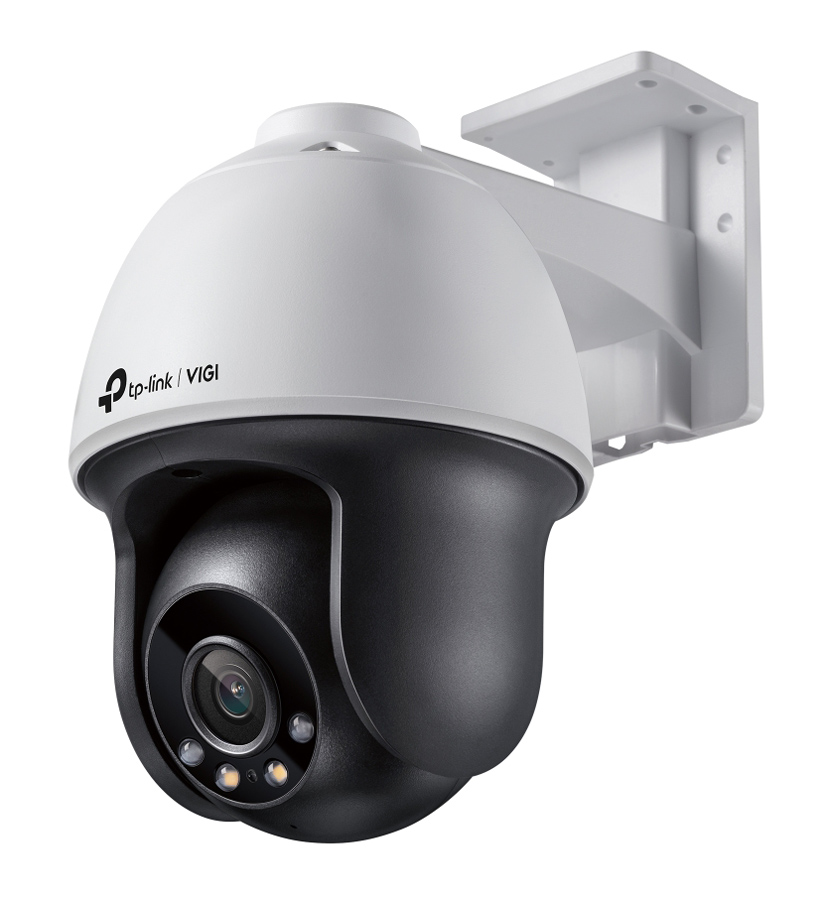

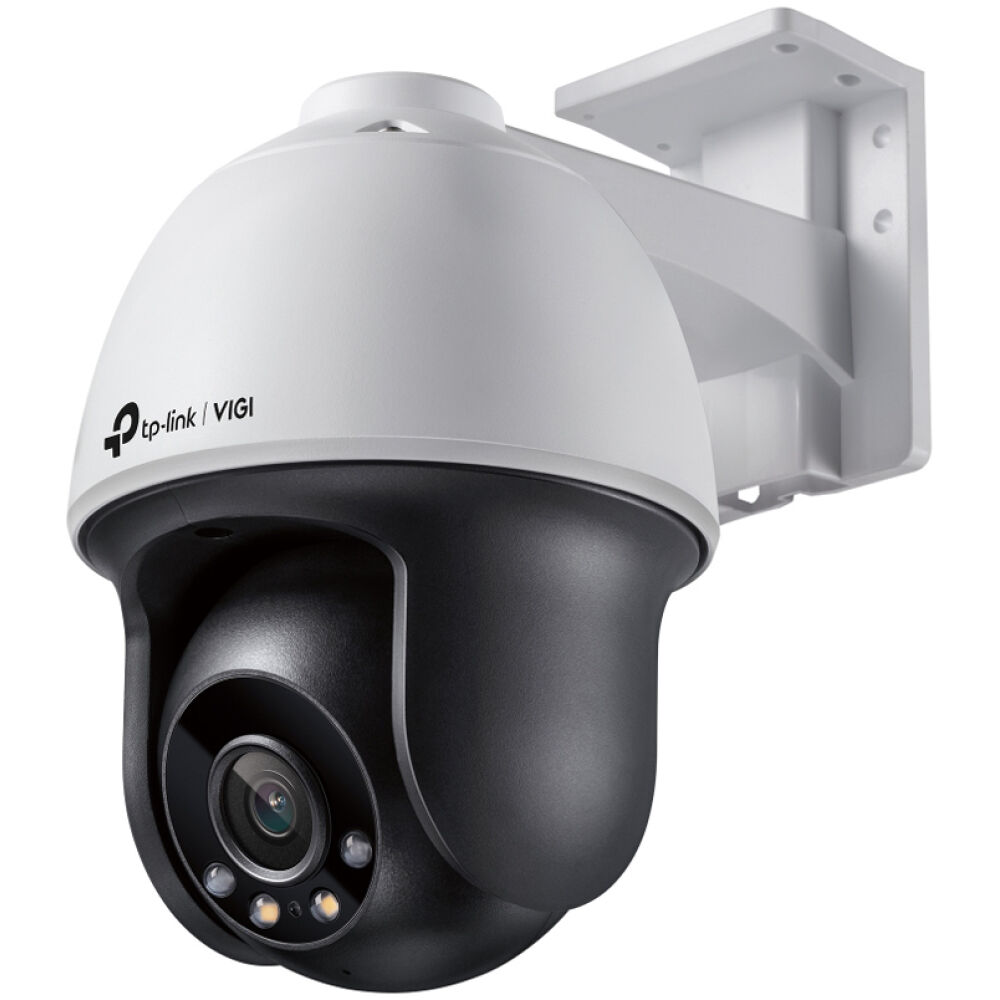

TP-LINK IP κάμερα VIGI C540, 4mm, 4MP, PoE, PTZ, IP66, SD, Ver. 2.0

Τεχνικά Χαρακτηριστικά

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Day/Night Switch: Unified/Scheduled/Auto
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Shutter Speed: 1/3 to 1/10000s
• Slow Shutter: Yes
• Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism: IR Cut Filter

Lens

• Type: Fixed Focal Lens
• Focal Length: 4mm
• Aperture: F1.6
• FOV: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
• Lens Mount: M12
• DORI Distance: Detect: 80m, Observe: 33m, Recognize: 16m, Identify: 8m

Angle adjustment (manual)

• Range: Pan: 0° to 348°, Tilt: 0° to 120°

PTZ

• Pan/tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°
• Pan/tilt Speed: Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s, Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
• Manual Control Speed: Configurable from 8° to 35°/s
• Presets: 300
• Patrol Scan: 8 patrols, up to 8 presets for each patrol
• Power-off Memory: Yes
• Park Action: Yes
• 3D Positioning: Preset, Patrol Scan

Illuminator

• IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED: Quantity: 2, Range: 30m
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video

• Max. Resolution: 2560 x 1440
• Main Stream: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps / Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
• Sub-Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps / Resolution: 640×480, 352×288, 320×240
• Bit Rate Control: CBR, VBR
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate: Main Stream: 256Kbps to 4Mbps, Sub-Stream: 64Kbps to 512Kbps


• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: >/=52dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio

• Audio Communication: Two-Way Audio
• Audio Input: Yes
• Audio Output: Yes
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64Kbps (G.711 alaw)

Network

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF: Yes
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View: Up to 6 Channels
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Network Storage: NAS (NFS, SMB/CIFS)

Alarm and event management

• Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Output Notification: Message Push

Interfaces

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Reset Button: Yes
• Power: DC Power Port
• On-board Storage: Built-In Memory Card Slot, Support Micro SD Card (δεν συμπεριλαμβάνεται), Up to 256GB
• Built-in Microphone: Yes
• Built-in Speaker: Yes

General

• Power Consumption: 12V DC: Max 14W, PoE: Class 4
• Power Supply: 12V DC +/-5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 4)
• Operating Temperature: -30 ~ +60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Material: Plastic
• Protection: IP66
• Dimensions (LxWxH): 120 x 172 x 198mm
