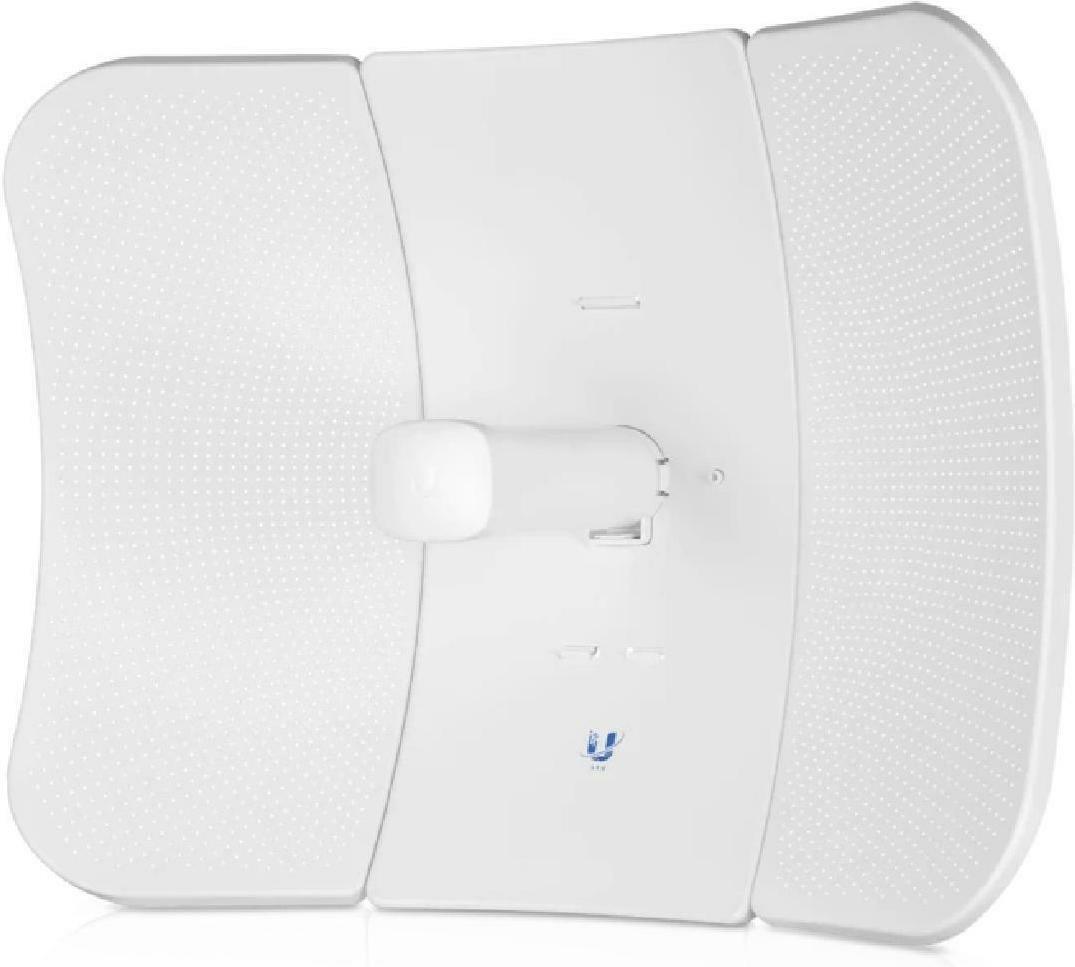

UBIQUITI PtMP CPE LTU-XR, 550 Mbps, 5GHz, IPX6

Τεχνικά Χαρακτηριστικά

Hardware

• Networking interfaces: (1) GbE RJ45 port
• Button: Factory reset
• EDs: Power/ethernet
• RF connections: Internal
• Max. power consumption: 8.5W
• Power method: Passive PoE 2-pair (4, 5+; 7, 😎
• Power supply: 24VDC, 0.5A Gigabit PoE adapter (included)
• Supported voltage range: 22 to 26VDC
• Operating temperature: -40 to 55°C
• Operating humidity: 5 to 95% non-condensing

System

• Maximum throughput: 550 Mbps
• Encryption: WPA2-PSK (AES)
• Uplink/downlink ratio: 25/75, 33/67, 50/50

Software

• OS: airOS®
• Modes: PtMP CPE only
• Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
• Utilities: airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
• Auto distance adjustment: Yes
• Auto power adjustment: Yes
• Network: Router mode
• Security: Yes
• Statical reporting: Yes
• Management interface: Bluetooth management for easy setup over UISP App, WEB UI
• Minimum software requirements: Modern Web browser or Android/iOS smartphone

RF

• Operating frequency*: 5.15 to 5.95 GHz *Depends on regulatory region.
• Max. conducted TX power: 25 dBm
• Channel bandwidth: 10/20/30/40/50 MHz
• Antenna Gain: 29 dBi
• Isolation: 20 dB
• Beamwidth: HPOL: 3 dB: 5.5°, 6 dB: 7.5°, VPOL: 3 dB: 5.5°, 6 dB: 7.5°, Elevation: 3 dB: 5.5°, 6 dB: 7.5°
• Electrical downtilt: 0°

Mechanical

• Dimensions: 747 x 525 x 347 mm
• Weight: 3.2 kg (7.06 lb)
• Enclosure materials: Aluminum alloy, UV stabilized polycarbonate
• Mount material: UV stabilized polycarbonate
• Mount: Integrated pole mount (included), Pole compatibility: Φ35-60 mm
• Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
• Weatherproofing: IPX6
