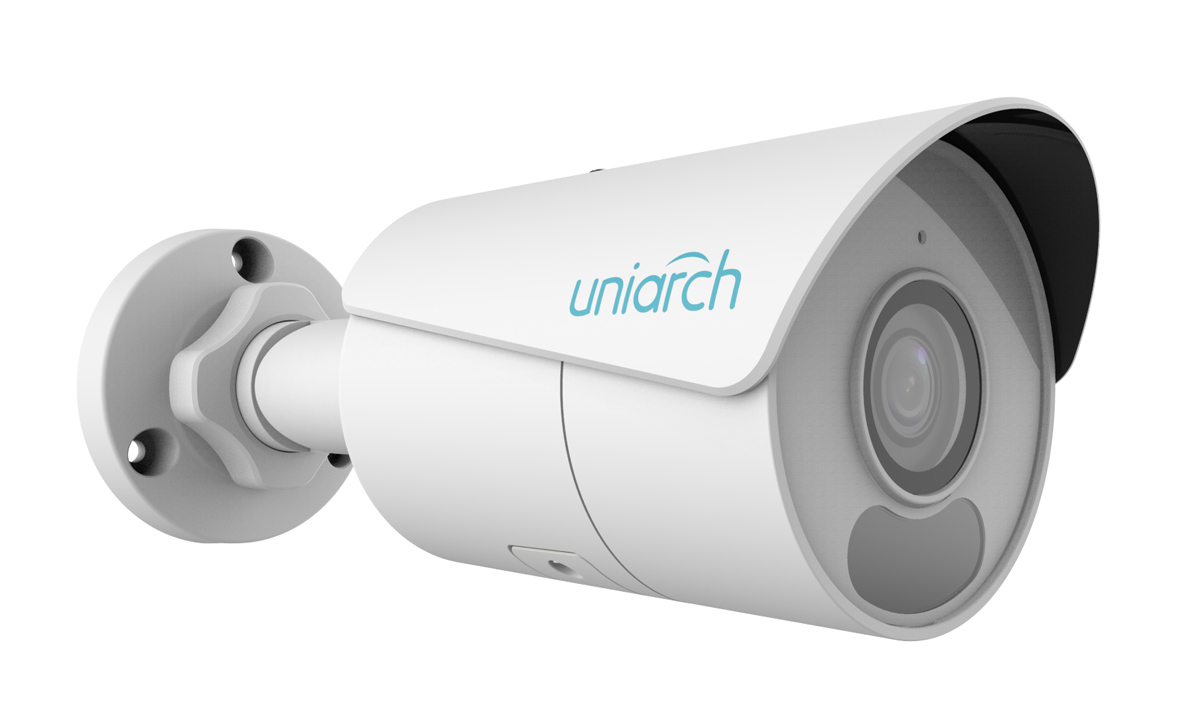

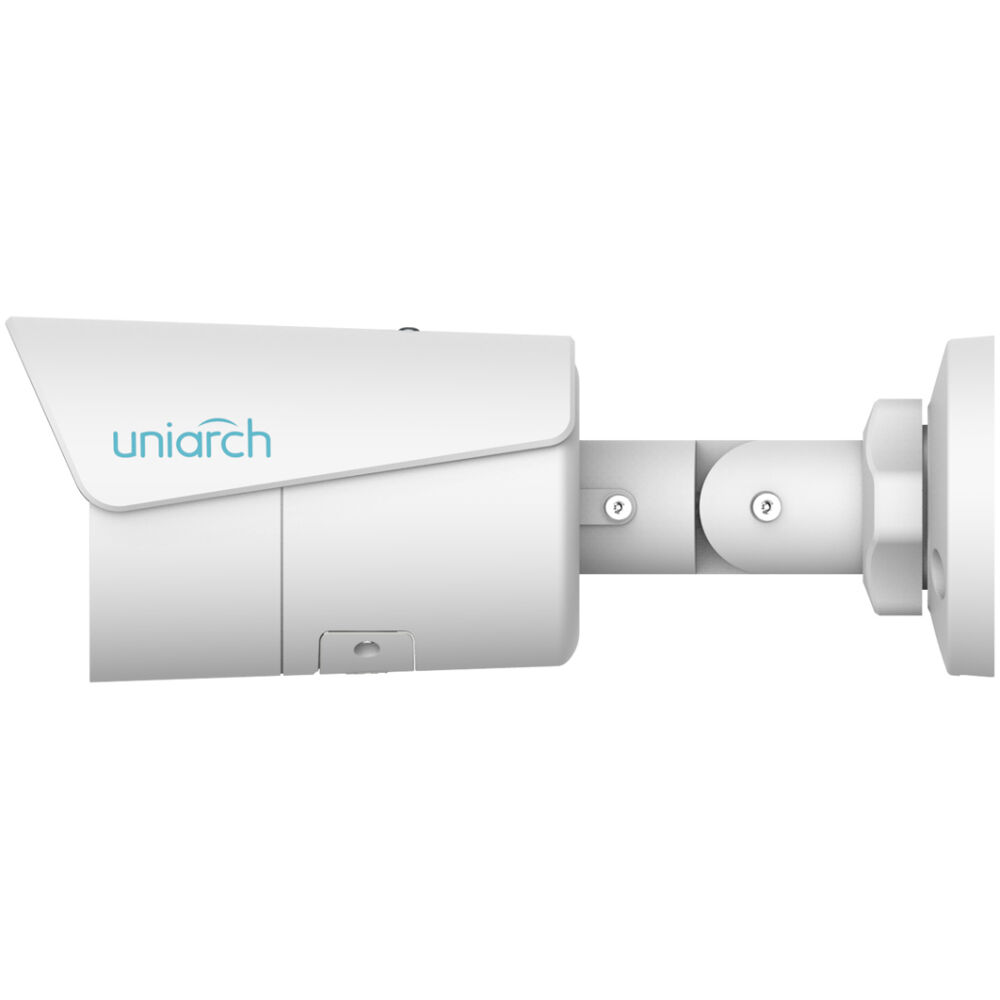

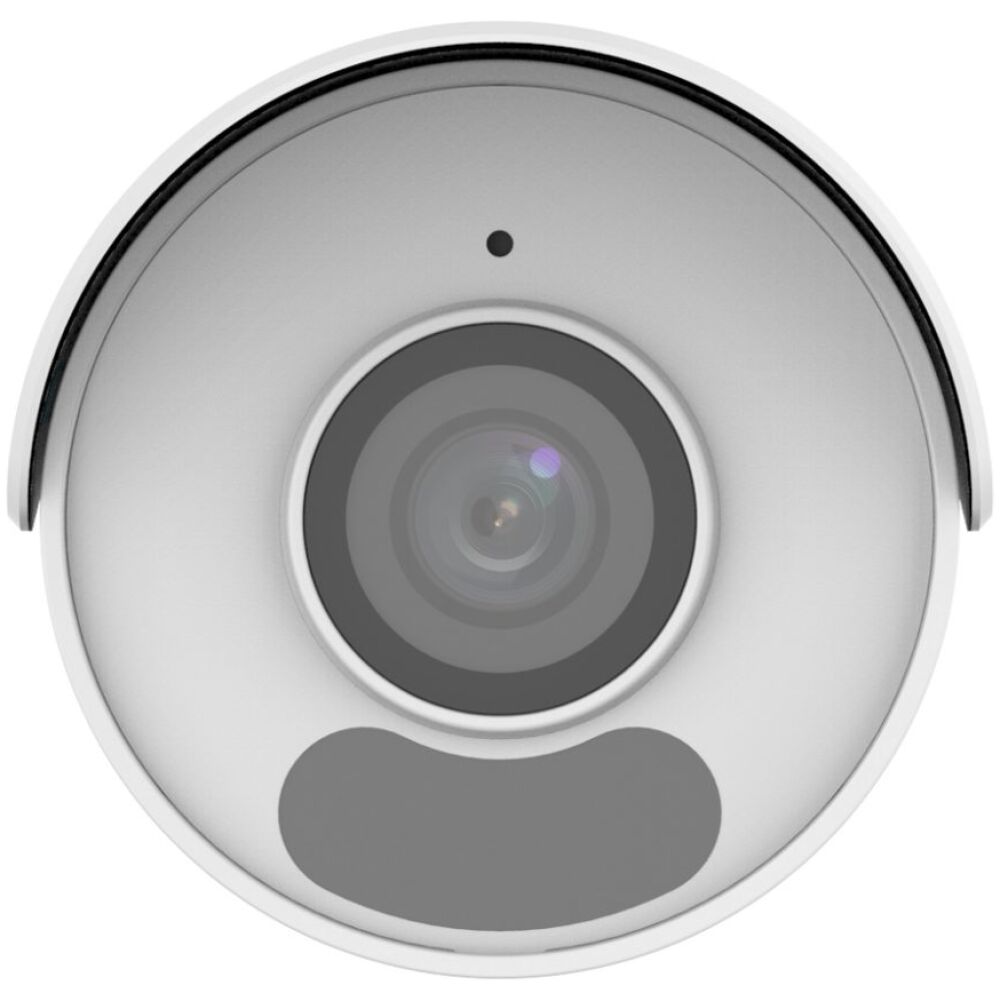

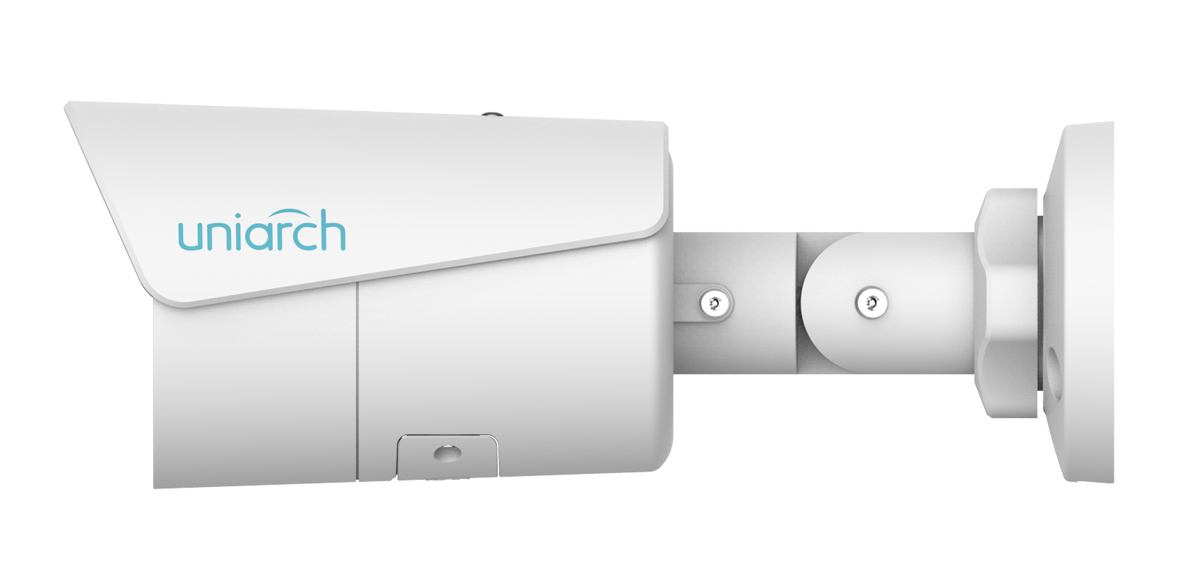

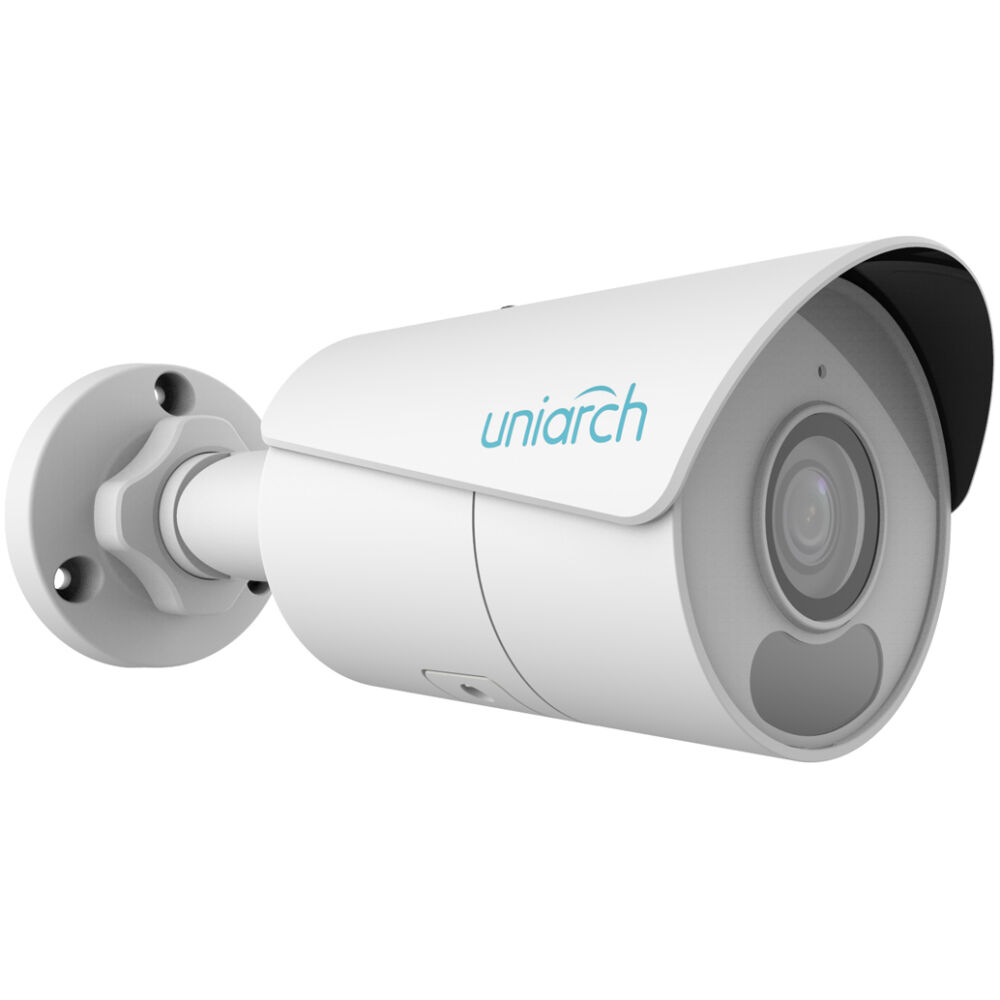

UNIARCH IP κάμερα IPC-B128-APF28KM, 2.8mm, 8MP, PoE, SD, IR 30m

Τεχνικά Χαρακτηριστικά

Camera
Max Resolution: 8MP
Sensor: 1/2.7″ CMOS
Min. Illumination: Colour: 0.01 lux (F1.6, AGC ON), 0 lux with IR on
Day/Night: IR cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N: >52dB
WDR: 120dB

Lens
Focal Length: 2.8mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 107.0°
Field of View (V): 59.7°
Field of View (D): 111.5°

DORI
-DORI Distance: Lens: 2.8mm, Detect: 63m, Observe: 25.2m, Recognize: 12.6m, Identify: 6.3m

Illuminator
Supplemental Light: IR
Illumination Distance (IR): 30m
Wavelength: 850 nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 8MP (3840×2160) @15fps, 5MP (2880×1620) @25/20fps, 4MP (2560×1440) @25/20fps, 3MP (2304*1296) @30/25fps, 2MP (1920×1080) @30/25fps / Sub Stream: 720P (1280×720) @30/25fps, D1 (720×576) Max 30fps, 640×360 Max 30fps
Video Bit Rate: 128 Kbps ~ 16 Mbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video Stream: Dual Streams

White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti clockwise
HLC: Support
BLC: Support
Defog: Digital Defog

Events
Basic Detection: Cross line, Intrusion (based on Human Body Detection), Motion Detection, Tampering Alarm, Audio Detection
General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Suppression: Support
Sampling Rate: 8KHZ

Storage
Edge Storage: Micro SD, up to 512 GB
Network Storage: ANR, NAS (NFS)

Network
Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
Security: Password Protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client: Uniarch Client, Uniarch app
Web Browser: Plug in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above / Plug in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface
Built-in Mic: Support
Network: 1x RJ45 10M/100M Base TX Ethernet

General Description
Power: DC 12V+/-25%, PoE (IEEE 802.3af), Power consumption: Max 3.7W
Power Interface: Φ5.5mm coaxial power plug
Material: Metal
Working Environment : 30 °C ~ 60 °C, Humidity: </=95% RH (non condensing)
Surge Protection: 4KV

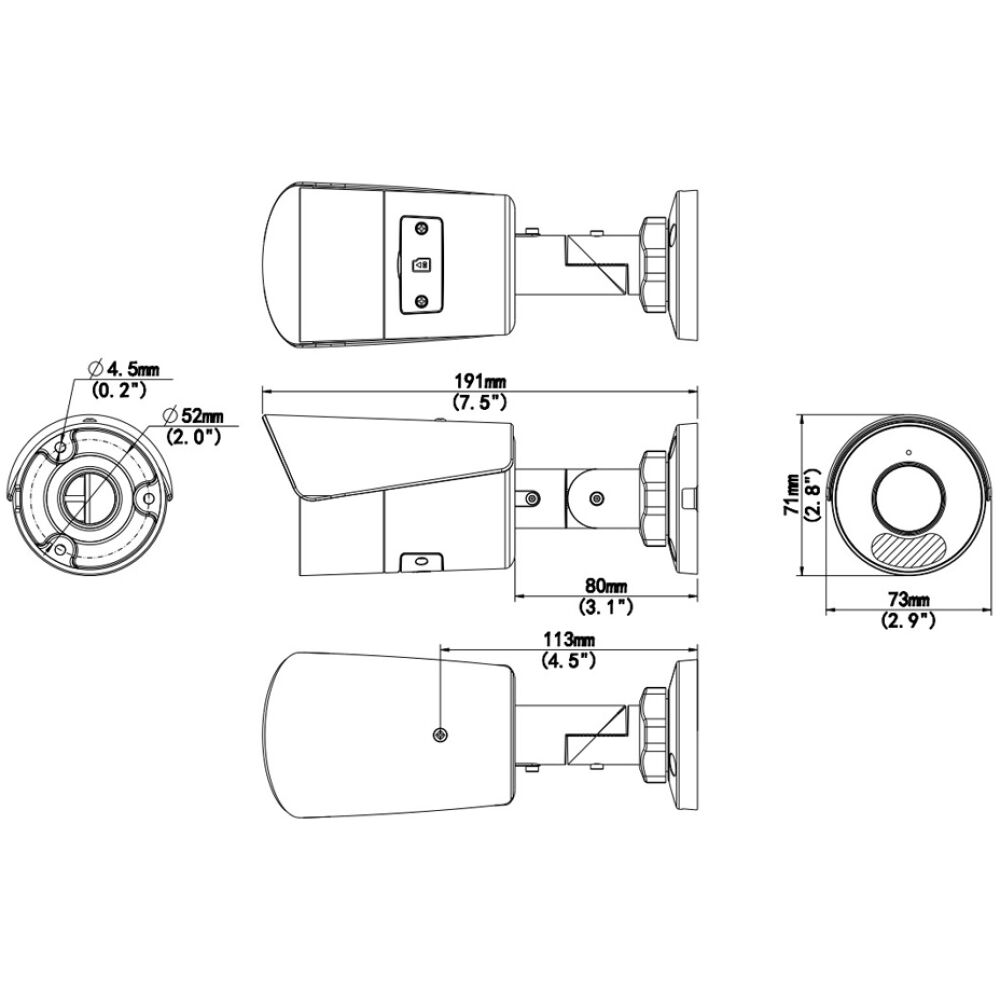

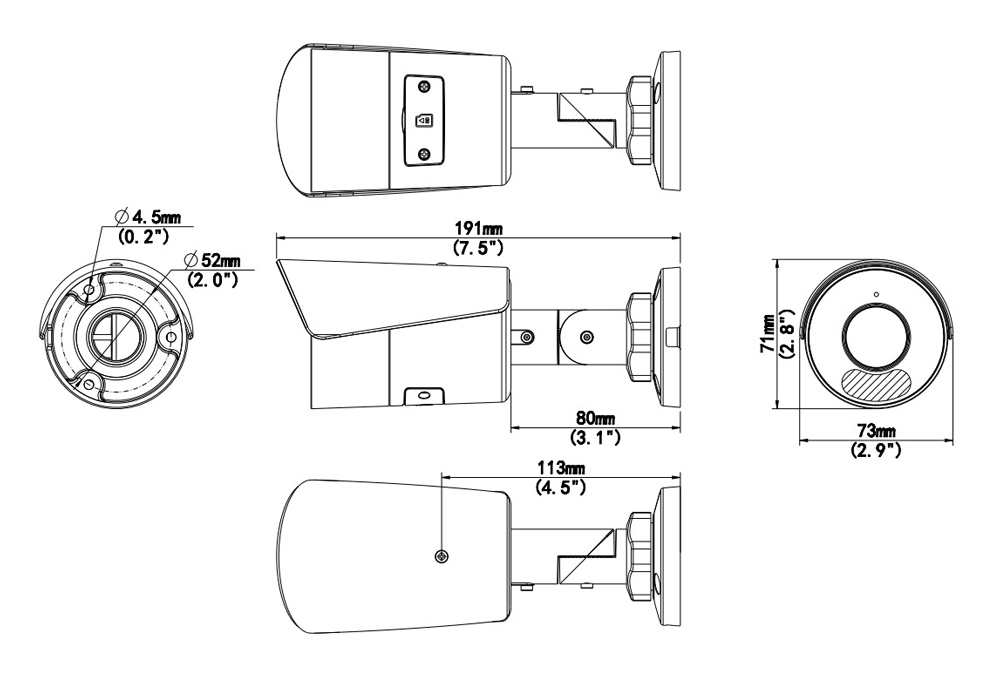

Dimensions: 191 x 73 x 71mm
Weight: 0.43kg
