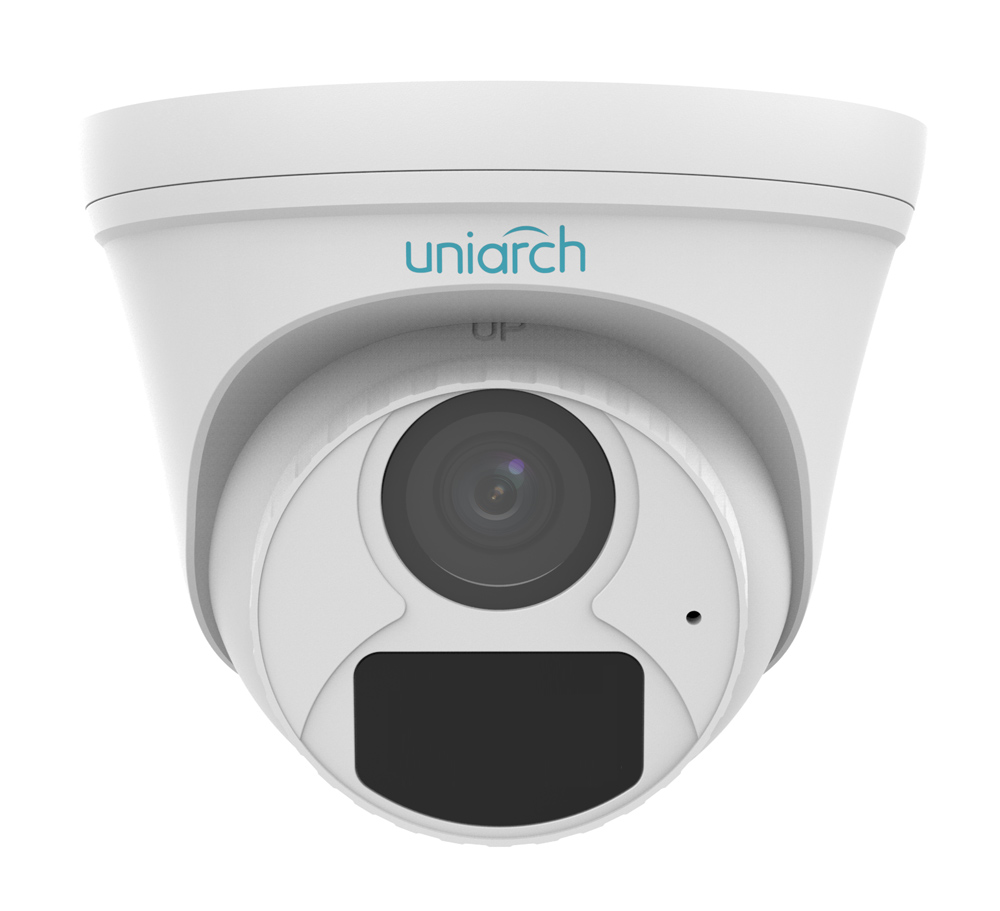

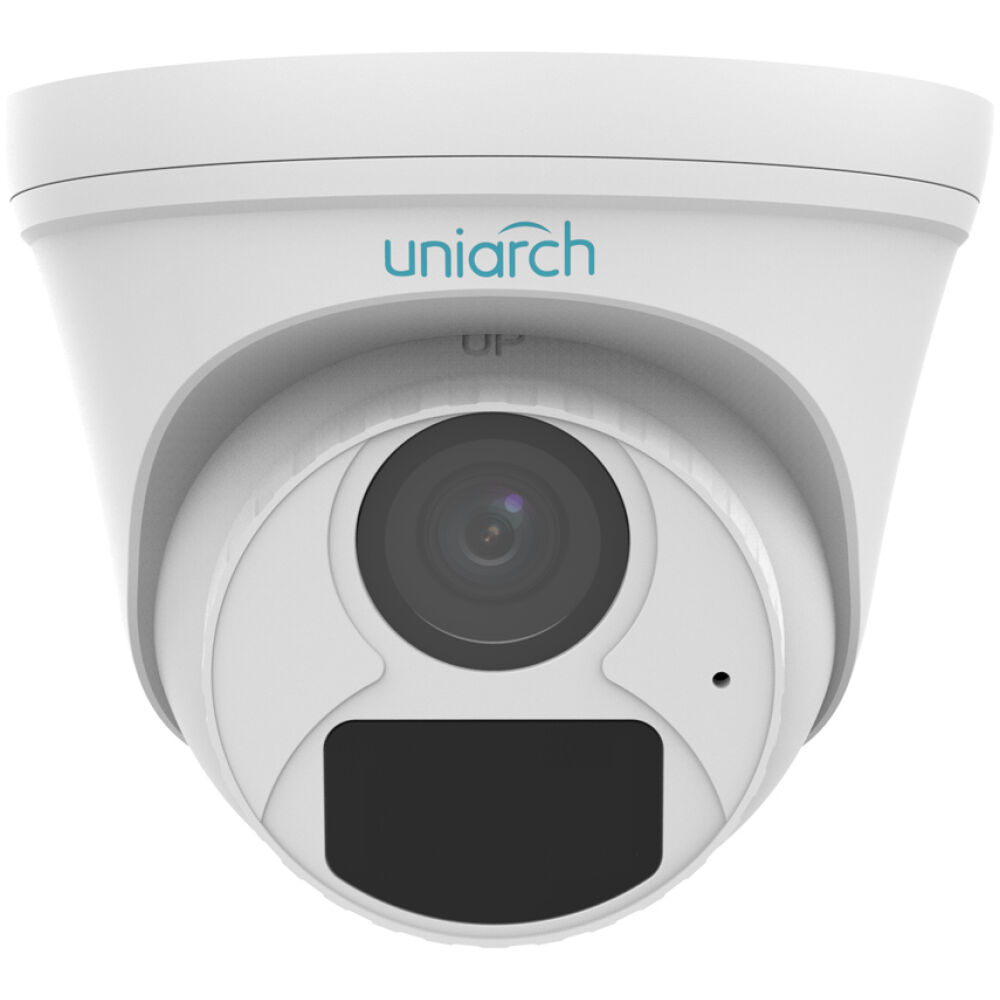

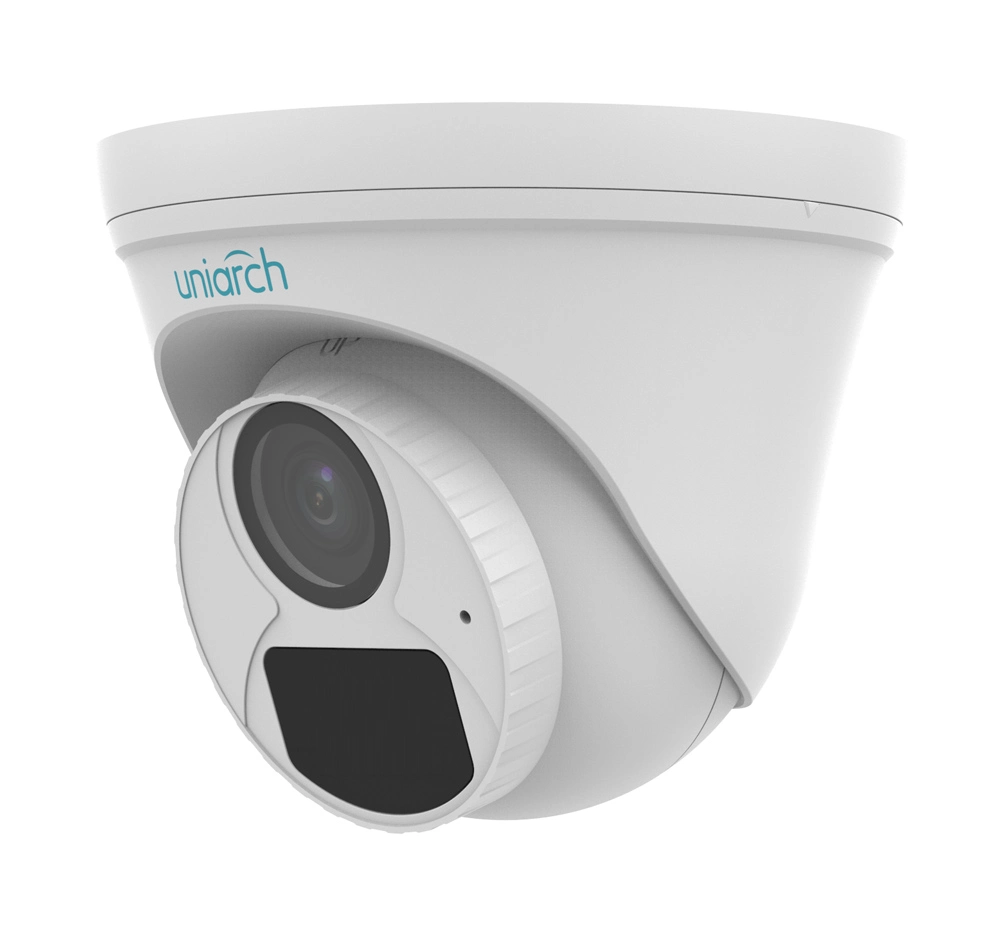

UNIARCH IP κάμερα IPC-T122-APF28, 2.8mm, 2MP, IP67, PoE, IR έως 30m

Τεχνικά Χαρακτηριστικά

Camera

• Sensor: 1/2.8″, progressive scan, CMOS
• Lens: 2.8mm @F2.1
• DORI Distance: Lens: 2.8mm, Detect: 43.4m, Observe: 17.4m, Recognize: 8.7m, Identify: 4.3m
• Angle of View (H): 106.7°
• Angle of View (V): 57.1°
• Angle of View (O): 115.7°
• Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination: Color: 0.02Lux (F2.1, AGC ON), 0Lux with IR
• Digital noise reduction: 2D/3D DNRDay/Night: IR-cut filter with auto switch (ICR)
• S/N: >52dB
• IR Range: Up to 30m (98ft) IR range
• Defog: Digital Defog
• WDR: DWDR

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 1080P (1920×1080), Max 25fps / 720P (1280×720), Max 25fps
  • Sub Stream: D1 (720×576), Max 25fps / 640×360,Max 25fps / 2CIF(704×288), Max 25fps / CIF(352×288), Max 25fps
• HLC: Supported
• BLC: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP
• Compatible Integration: ONVIF (Profile S, Profile T), API

Interface

• Network: 10/100M Base-TX Ethernet
• Built-in Mic: Supported

General

• Power: DC 12V +/-25%, PoE
• Power consumption: Max 3.5W

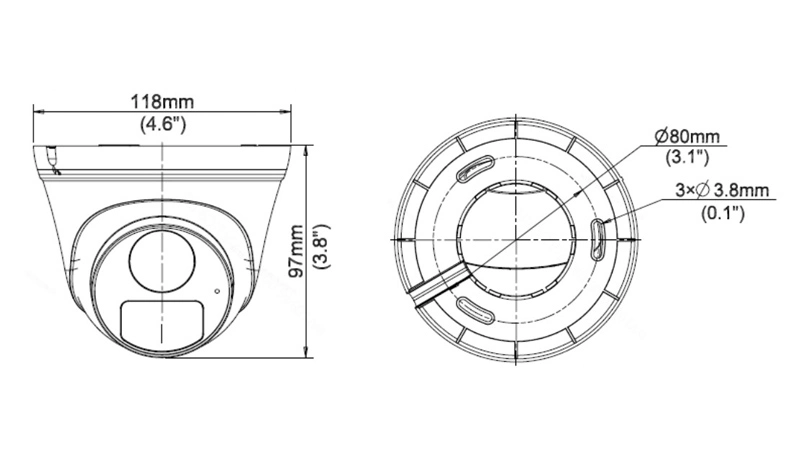

• Dimensions (Φ x H): Φ118 x 97mm
• Weight: 0.25kg
• Working Environment: -30 °C ~ 60 °C, Humidity: </=95% RH (non-condensing)
• Surge Protection: 4KV
• Ingress Protection: IP67
