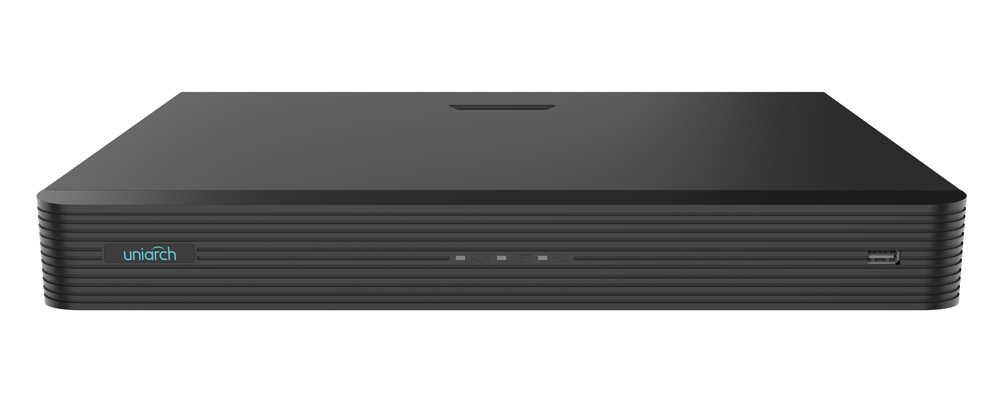

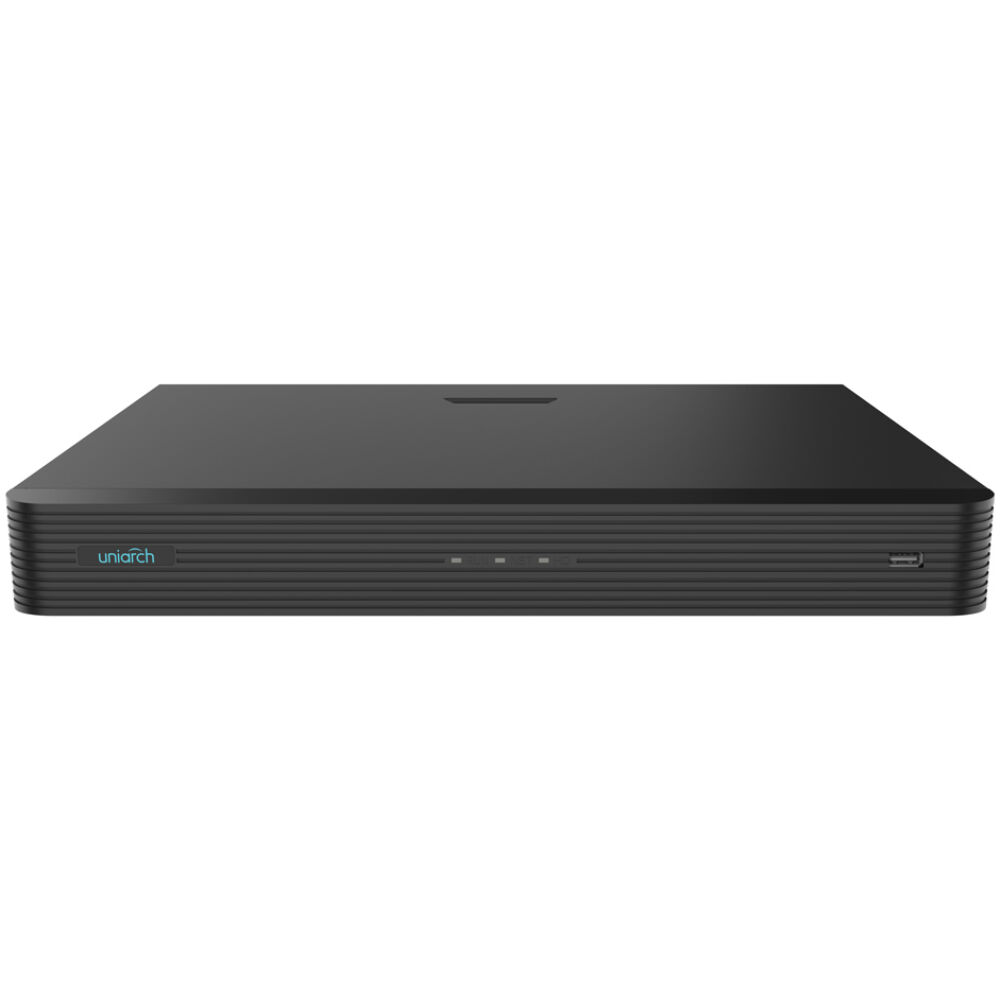

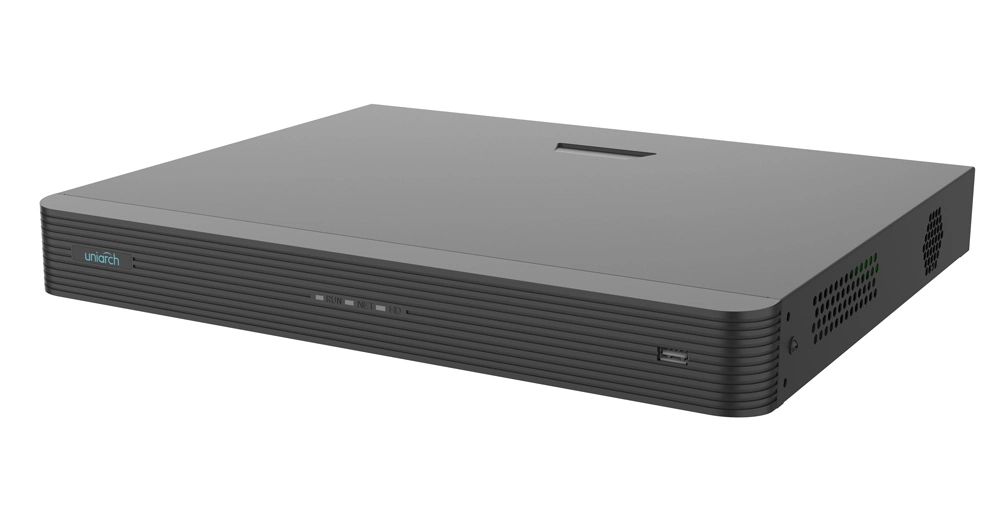

UNIARCH NVR καταγραφικό NVR-216S2, H.265/H.264, 8MP, 16 κανάλια

Τεχνικά Χαρακτηριστικά

Video/Audio Input

• IP Video Input: 16-ch

Network

• Incoming Bandwidth: 160Mbps
• Outgoing Bandwidth: 96Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP

Video/Audio Output

• HDMI Output: 1024×768 @60, 1280×720 @60, 1280×1024 @60, 1600×1200 @60, 1920×1080 @50, 1920×1080 @60, 4K (3840×2160 @30)
• VGA Output: 1024×768 @60, 1280×720 @60, 1280×1024 @60, 1600×1200 @60, 1920×1080 @50, 1920×1080 @60
• Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Audio Compression: G.711A, G.711U
• Synchronous Playback: 16-ch
• Live View Display: 1/4/6/8/9/16
• Corridor Mode Screen: 3/4/5/7/9/10/12/16

Decoding

• Decoding format: Ultra 265/H.265/H.264
• Live view/Playback: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability: 1x 4K @30, 2x 4MP @30, 3x 3MP @25, 4x 1080P @30, 8x 720P @30, 16x D1

Hard Disk

• SATA: 2x SATA interfaces
• Capacity: up to 6TB for each disk

Smart

• VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area
• VCA Search: Behavior Search
• Smart Intrusion Prevention (SIP) by Camera: 4-ch

General Alarm

• General Alarm: Motion, Human Body Detection, Video Loss, Alarm Input
• Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access

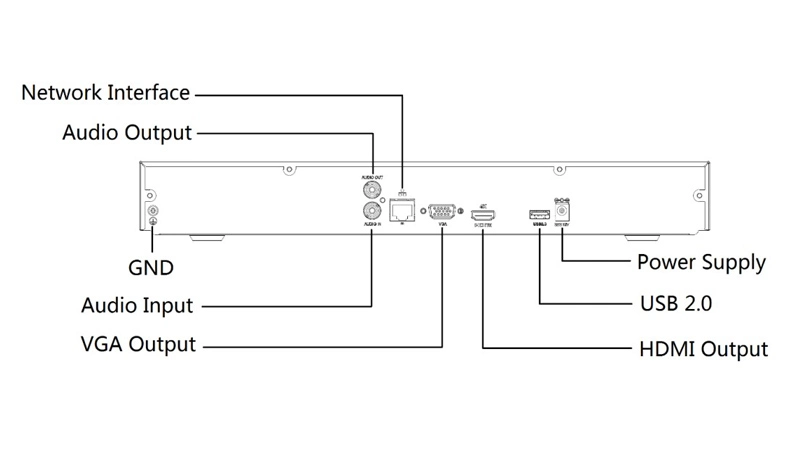

External Interface

• Network Interface: 1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• USB Interface: Front panel: 1x USB2.0, Rear panel: 1x USB2.0

General

• Power Supply: 12V DC
• Power Consumption:: </= 7 W (without HDD)
• Working Environment: -10 °C ~ 55 °C, Humidity: </=90% RH (non-condensing)

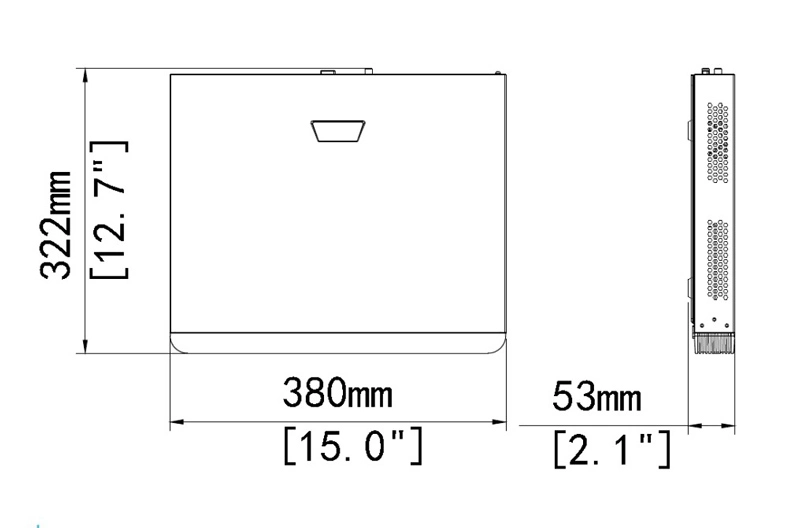

• Dimensions (WxDxH): 380 x 322 x 53mm
• Weight: ~1.6Kg
